SLP Headers on a 96 SE

Old 03-26-2007, 11:37 AM
  #1
Senior Member
Posts like a Turbo
Thread Starter

Speedster400's Avatar

Join Date: Dec 2006
Location: NHRA Division 3
Posts: 258
Likes: 0
Received 0 Likes on 0 Posts
Speedster400 is on a distinguished road
Default SLP Headers on a 96 SE

Do you guys think they will fit (with some minor modification), they are going on my 96 with the least mods. I see they needed to be modified for 97'* so how different could a 96 be to a 97?
Old 03-26-2007, 11:39 AM
  #2
Senior Member
Certified Car Nut

BonneMeMN's Avatar

Join Date: Jun 2003
Posts: 15,928
Likes: 0
Received 1 Like on 1 Post
BonneMeMN is on a distinguished road
Default

You'll need a new downpipe at the least, and a W body dip stick tube IIRC.
Old 03-26-2007, 11:47 AM
  #3
Senior Member
Certified GM nut

OLDsman105's Avatar

Join Date: Jul 2004
Location: New York City
Posts: 1,912
Likes: 0
Received 0 Likes on 0 Posts
OLDsman105 is on a distinguished road
Default

where did you see that they needed to be modified. I know Billboost is running them.
Old 03-26-2007, 12:01 PM
  #4
Senior Member
Posts like a Turbo
Thread Starter

Speedster400's Avatar

Join Date: Dec 2006
Location: NHRA Division 3
Posts: 258
Likes: 0
Received 0 Likes on 0 Posts
Speedster400 is on a distinguished road
Default

Todd at intense said that they may need to be modified
Old 03-26-2007, 12:40 PM
  #5
Senior Member
True Car Nut

95naSTA's Avatar

Join Date: Feb 2003
Location: Philly
Posts: 4,508
Likes: 0
Received 0 Likes on 0 Posts
95naSTA is on a distinguished road
Default

With SLP'* the shock on the front trans mount needs to be removed and/or reworked.
You only have to shave a little bit off the top of the mount for the TOGs.
Old 03-26-2007, 12:48 PM
  #6
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Likes: 0
Received 8 Likes on 8 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

Hiyall!

Happy SLP guy here.

Here'* the scoop. They will bolt right on, and if you toss on a 3" cat at the same time they will almost come to the point of the firrst exhaust hanger under the car. Not sure where Jason (Bonnemn) is getting the info on the downpipe. It is part of the rear header piece.

You will need an O2 wire extension and a W Body trans filler tube, beyond that it'* straight forward.

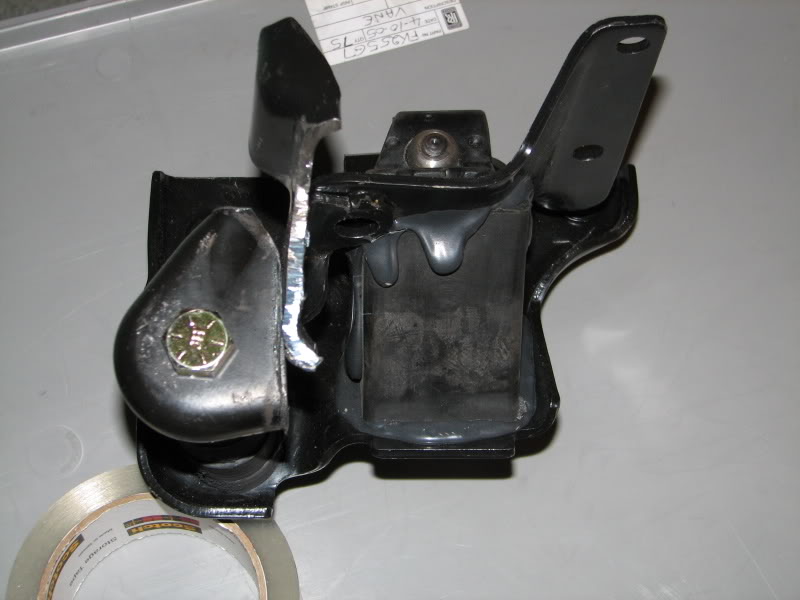

On the front trans mount, something needed to be done in my case. The mount has a baby strut on it to help with engine flex when you stomp it. I found that too much of the ear would have been removed to keep the strut in any capacity. Hence...a solid motor mount was developed.


Name:  IMG_1321.jpg
Views: 22
Size:  51.3 KB
(If you'd like more pics, just holler)

Two things to keep in mind when fabbing on up is the block has an out jutting area and the subframe is close 1/8" below the bottom of the bolt in my mount. I've been using it for over a month now and so far love it.
Old 03-26-2007, 11:18 PM
  #7
Senior Member
Certified Car Nut

BonneMeMN's Avatar

Join Date: Jun 2003
Posts: 15,928
Likes: 0
Received 1 Like on 1 Post
BonneMeMN is on a distinguished road
Default

Originally Posted by BillBoost37
Not sure where Jason (Bonnemn) is getting the info on the downpipe. It is part of the rear header piece.
Do they have provisions to bolt up exactly to the Cat or exhaust pipe, or welded? IIRC
Old 03-27-2007, 08:18 AM
  #8
DINOSAURUS BOOSTUS

Expert Gearhead

BillBoost37's Avatar

Join Date: Mar 2005
Location: Enfield, CT
Posts: 41,391
Likes: 0
Received 8 Likes on 8 Posts
BillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of lightBillBoost37 is a glorious beacon of light
Default

The SLP'* come down with a flexpipe, straighten out and are ready under the car to hook to the cat or race pipe etc. In my case a cat was welded on and done.
