Aeroforce Fuel Pressure Sensor Kit
#21
Yes, and on the website for the sensor, if you scroll a little further down, they sell the adapter also
#23
Ya, the fitting on the fuel rail is not NPT, it'* a straight thread.
I know what I am going to do.

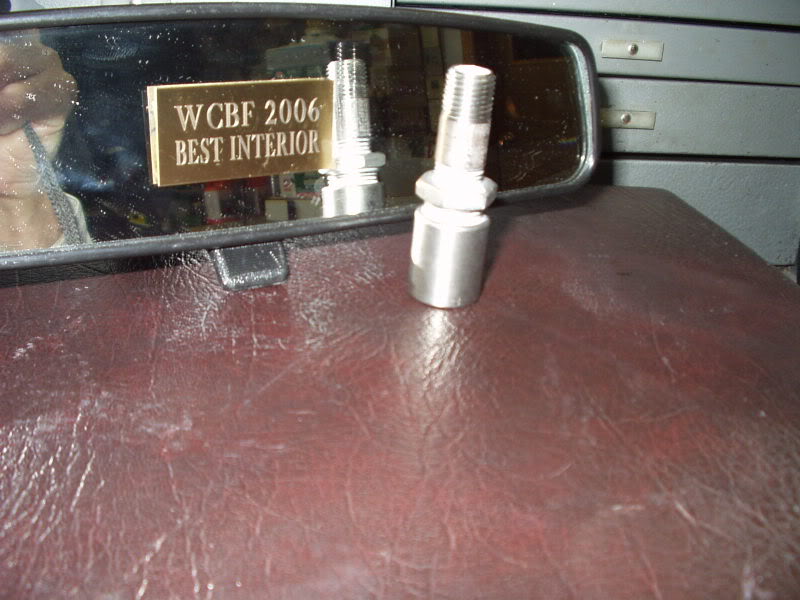

I will simply unscrew my existing underhood pressure gauge which has a 1/4" npt connection at the end of its 3 foot long braided hose and thread a 1/4" nipple in combination with a 3/8" x 1/4" bushing. The sensor will thread right into it.
I know what I am going to do.
I will simply unscrew my existing underhood pressure gauge which has a 1/4" npt connection at the end of its 3 foot long braided hose and thread a 1/4" nipple in combination with a 3/8" x 1/4" bushing. The sensor will thread right into it.
#26
Ya good point.
Just be innovative and find the right adapter to connect to the straight thread fitting of the schraeder valve and use bushings, couplings and nipples to make up the rest.
If this fuel pressure sender works out, I'm going to buy another one and use it to monitor my water injection pressure.
Just be innovative and find the right adapter to connect to the straight thread fitting of the schraeder valve and use bushings, couplings and nipples to make up the rest.
If this fuel pressure sender works out, I'm going to buy another one and use it to monitor my water injection pressure.
#29
I installed it last week.
Could not get it to seal inside the 3/8" coupling.
Leaked.
I took it apart several times and tried various sealing compounds. None of which worked. There would always be slight weepage and fuel smell.
When it was working, the gauge reading was all over the place.....52...56...61...54...changing every fraction of a second and very hard to read.
I was amazed at how high the pressure rose above 60 psi under boost. I even saw 75 psi once.
At least I now know that the pressure does not drop under full throttle upshifts.
I removed it and re-installed the underhood gauge.
At least it reads steady and can be used to adjust the regulator.
Could not get it to seal inside the 3/8" coupling.
Leaked.
I took it apart several times and tried various sealing compounds. None of which worked. There would always be slight weepage and fuel smell.
When it was working, the gauge reading was all over the place.....52...56...61...54...changing every fraction of a second and very hard to read.
I was amazed at how high the pressure rose above 60 psi under boost. I even saw 75 psi once.
At least I now know that the pressure does not drop under full throttle upshifts.
I removed it and re-installed the underhood gauge.
At least it reads steady and can be used to adjust the regulator.
