The ymmot04 project
01-12-2010, 01:36 PM
#81
DINOSAURUS BOOSTUS
Expert Gearhead
Why'd you have to ask me..lol
The coolant turn around is actually in the LIM, directly under the TB on that end. If you look under the TB, you will see the cover. Get a gasket from the dealer once you know what it looks like. No idea what they call it. lol Then when you remove the cover, you'll see two squares. You want to connect them in the middke and remove a slight amount of material to increase the overall ability of the water in that turn around area. I'll see what I can find for pictures. I know 1993 SLE has good pics.
Don't doubt your fab skills. I doubted mine...and look how it turned out.
The coolant turn around is actually in the LIM, directly under the TB on that end. If you look under the TB, you will see the cover. Get a gasket from the dealer once you know what it looks like. No idea what they call it. lol Then when you remove the cover, you'll see two squares. You want to connect them in the middke and remove a slight amount of material to increase the overall ability of the water in that turn around area. I'll see what I can find for pictures. I know 1993 SLE has good pics.
Don't doubt your fab skills. I doubted mine...and look how it turned out.
01-12-2010, 01:47 PM
#83
DINOSAURUS BOOSTUS
Expert Gearhead

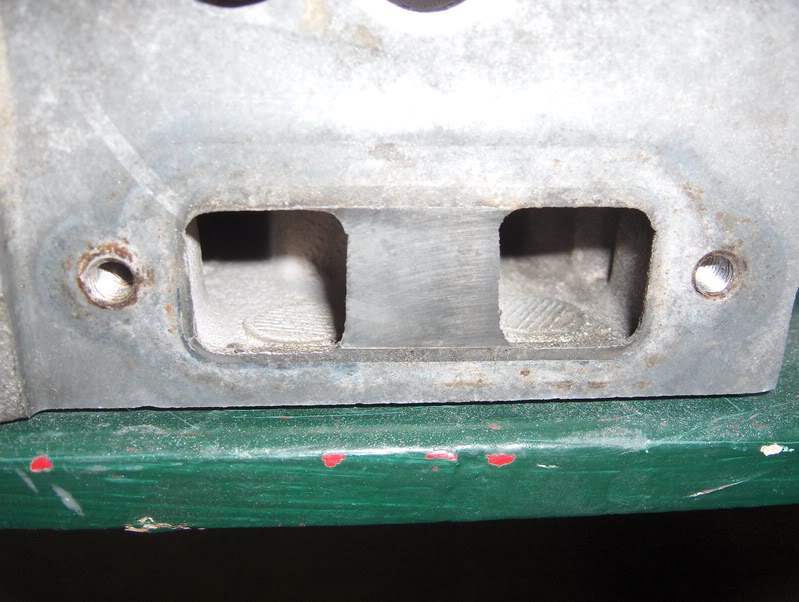

Here it is stock
And here we see how Pat joined the two as well as removing some of the wall that the coolant would need to flow around.
My manifold looks the same. This helps the flow of coolant from the back head toward the thermostat.
And here we see how Pat joined the two as well as removing some of the wall that the coolant would need to flow around.
My manifold looks the same. This helps the flow of coolant from the back head toward the thermostat.
01-12-2010, 01:54 PM
#84
Senior Member
Posts like a Northstar
Join Date: Feb 2009
Location: Northern Illinois
Posts: 789
Likes: 0
Received 0 Likes
on
0 Posts
- Mount support bracket for alternator
- Replace fuel lines with AN lines and fittings
- Remove EGR
- Remove cap on throttle body and open up coolant passage (Bill, could you elaborate on this a bit, how is it done? I have absolutely no idea)
- Move wiring under TB
- Flow sensor for IC
- Switch for IC
- Get HPTuner and Tune
- Headers
- Performance resonator
01-12-2010, 02:10 PM
#86
-- SITE DONATOR --
True Car Nut
Hey, your the one that brought it up! Plus I knew you would have some good pictures and advice like ya did
Thanks!
Yep, I see it on there. Looks like I'll have to modify it a bit to work for this.
True, I'll see if I can find a way to add some extra support. I want to take it down and level it anyways.
Whenever your feeling up to it, I need to find the fuel lines and could use your help with that. Definitely going to need someone to machine the LIM for this coolant mod as well. Then this summer will probably be when the headers/res will be getting done so we can talk about that then.
As for HPTuner, you already know I'm ready when you are.
Thanks!Yep, I see it on there. Looks like I'll have to modify it a bit to work for this.
Whenever your feeling up to it, I need to find the fuel lines and could use your help with that. Definitely going to need someone to machine the LIM for this coolant mod as well. Then this summer will probably be when the headers/res will be getting done so we can talk about that then.
As for HPTuner, you already know I'm ready when you are.
