possible leak not sure

Thread Tools

Search this Thread

Old 01-12-2016, 04:45 PM
  #1
Senior Member
Posts like a 4 Banger
Thread Starter

denaliman03's Avatar

Join Date: Nov 2015
Location: Philadelphia pa
Posts: 103
Received 1 Like on 1 Post
denaliman03 is on a distinguished road
Default possible leak not sure

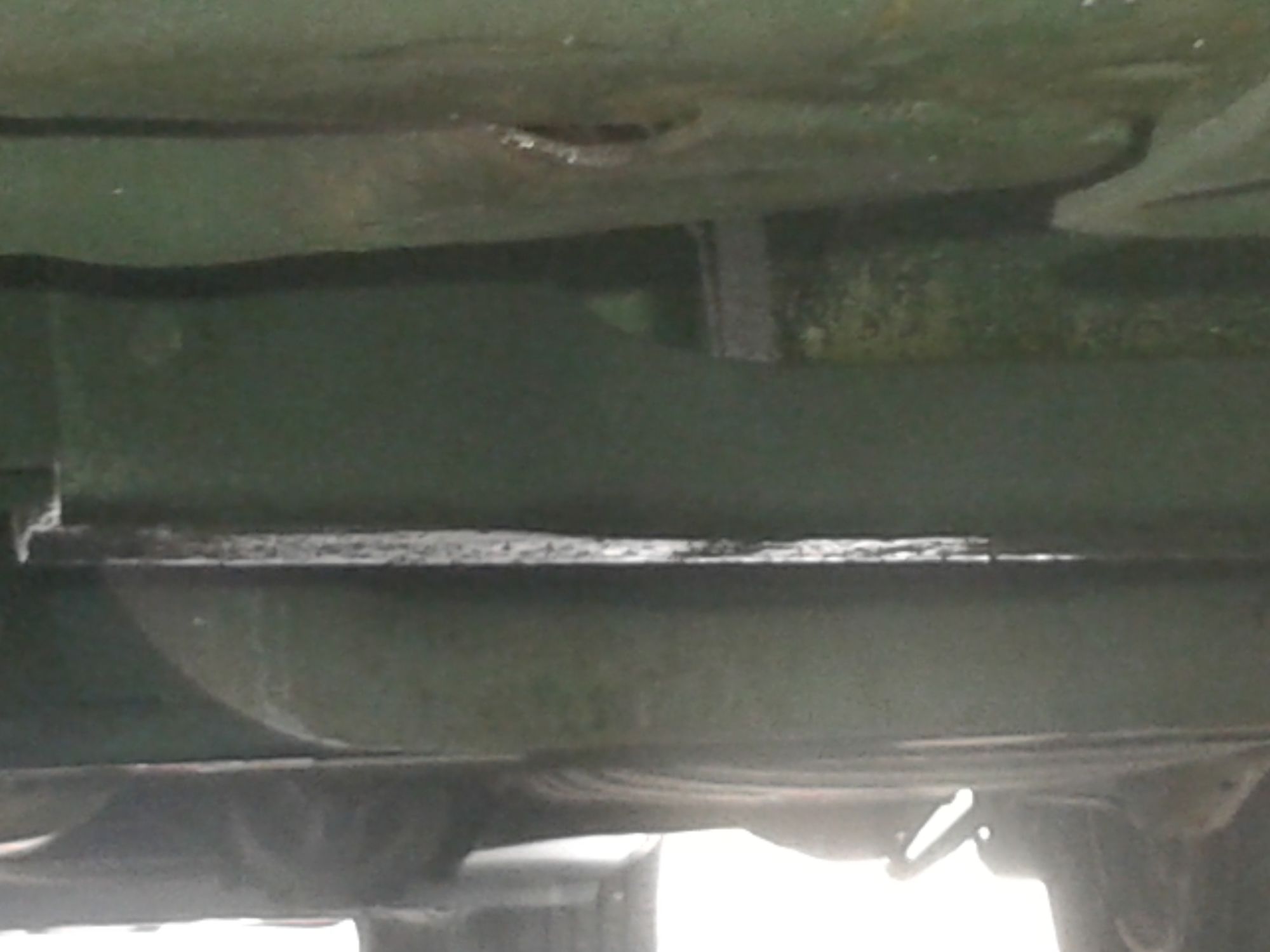

Anyone no on the frame what that clear oil like substance is. I wanna say it looks like transfer case oil. Cause on the ground my street isn't level so I see this clear oil substance in the middle of the ground all the way to where the running board is. It'* in the middle dosent smell like trans fluid. What every it is, its causing my truck to drive like crap. No check like engine any thoughts?


Attached Thumbnails possible leak not sure-80-20160109_093751_e448df4d1cd9967b462dd2634a2f8f0728c72e78.jpg
Old 01-12-2016, 08:15 PM
  #2
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 7,270
Received 457 Likes on 359 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

If you're leaking that much fluid, you're bound to find a fluid that'* low, and that should give you a place to start. Power steering, brake fluid, transfer case oil, and differential oil can all fit your description.
The following users liked this post:
Soft Ride (01-12-2016)
Old 01-12-2016, 11:09 PM
  #3
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 7,270
Received 457 Likes on 359 Posts
rjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant futurerjolly87 has a brilliant future
Default

And can you please elaborate on 'drive like crap'.
Old 01-13-2016, 12:53 AM
  #4
Senior Member
Posts like a 4 Banger
Thread Starter

denaliman03's Avatar

Join Date: Nov 2015
Location: Philadelphia pa
Posts: 103
Received 1 Like on 1 Post
denaliman03 is on a distinguished road
Default

Well with my stalling issues I'm having and th e way my truck shifts . After a hard acceleration it with stall out. Even if I have a quater tank. Now I notice 20 dollars gives my half a tank when it should give me a quater tank since I have a 32 gallon. Now my tans slight revs before it shifts into gear. I've been reading that a throttle position sensor can cause this Bucking and Jerking/Hesitation while Accelerating. I have a drive by wire throttle body and no check light for anything. Example of a bad part with no check light I had to change my coolant temp sensor cause it would read only a quater. That code would of read P0128 if the light came on for it. I change it can fix the issue. Now if I change my throttle position sensor u think that could fix my issue I have 176xxx
Old 01-13-2016, 12:59 AM
  #5
Senior Member
Posts like a 4 Banger
Thread Starter

denaliman03's Avatar

Join Date: Nov 2015
Location: Philadelphia pa
Posts: 103
Received 1 Like on 1 Post
denaliman03 is on a distinguished road
Default




That'* what my trans fluid looks like it not burnt looking it'* like a brownish red tone to it. My truck is on a slightly uneven street so that'* why it looks a lil low
Attached Thumbnails possible leak not sure-80-13971_trans_fluid_80_20151202_222332_f1b79f9fbbf5c99180ac4581f1520915699bcb19_d5ecbab2ae54542.jpg

Last edited by denaliman03; 01-13-2016 at 01:02 AM.
Old 01-13-2016, 01:08 AM
  #6
Senior Member
Posts like a 4 Banger
Thread Starter

denaliman03's Avatar

Join Date: Nov 2015
Location: Philadelphia pa
Posts: 103
Received 1 Like on 1 Post
denaliman03 is on a distinguished road
Default

Come to think of I hold my hood open and there'* a slight whine sounds like it'* near the power steering reservoir. But an idle pulley can make a noise that my put a strain on other pulleys. That'* a thought I had. And also since I haven't change my spark plugs could that possible cause the stall or Hesitation or does that seem like a fuel issuse.
Old 01-13-2016, 02:33 AM
  #7
Senior Member
Posts like a Turbo

Mad_Coachman's Avatar

Join Date: Dec 2003
Location: Baldwin,New York
Posts: 245
Received 39 Likes on 29 Posts
Mad_Coachman will become famous soon enoughMad_Coachman will become famous soon enough
Default

Originally Posted by denaliman03
Come to think of I hold my hood open and there'* a slight whine sounds like it'* near the power steering reservoir. But an idle pulley can make a noise that my put a strain on other pulleys. That'* a thought I had. And also since I haven't change my spark plugs could that possible cause the stall or Hesitation or does that seem like a fuel issuse.
Get it on LEVEL ground and check all of your fluids. That whine may be your power steering fluid is low. Also, if you can't remember when your spark plugs were changed I think that would be a good place to start.
Old 01-14-2016, 12:48 AM
  #8
Senior Member
Posts like a 4 Banger
Thread Starter

denaliman03's Avatar

Join Date: Nov 2015
Location: Philadelphia pa
Posts: 103
Received 1 Like on 1 Post
denaliman03 is on a distinguished road
Default

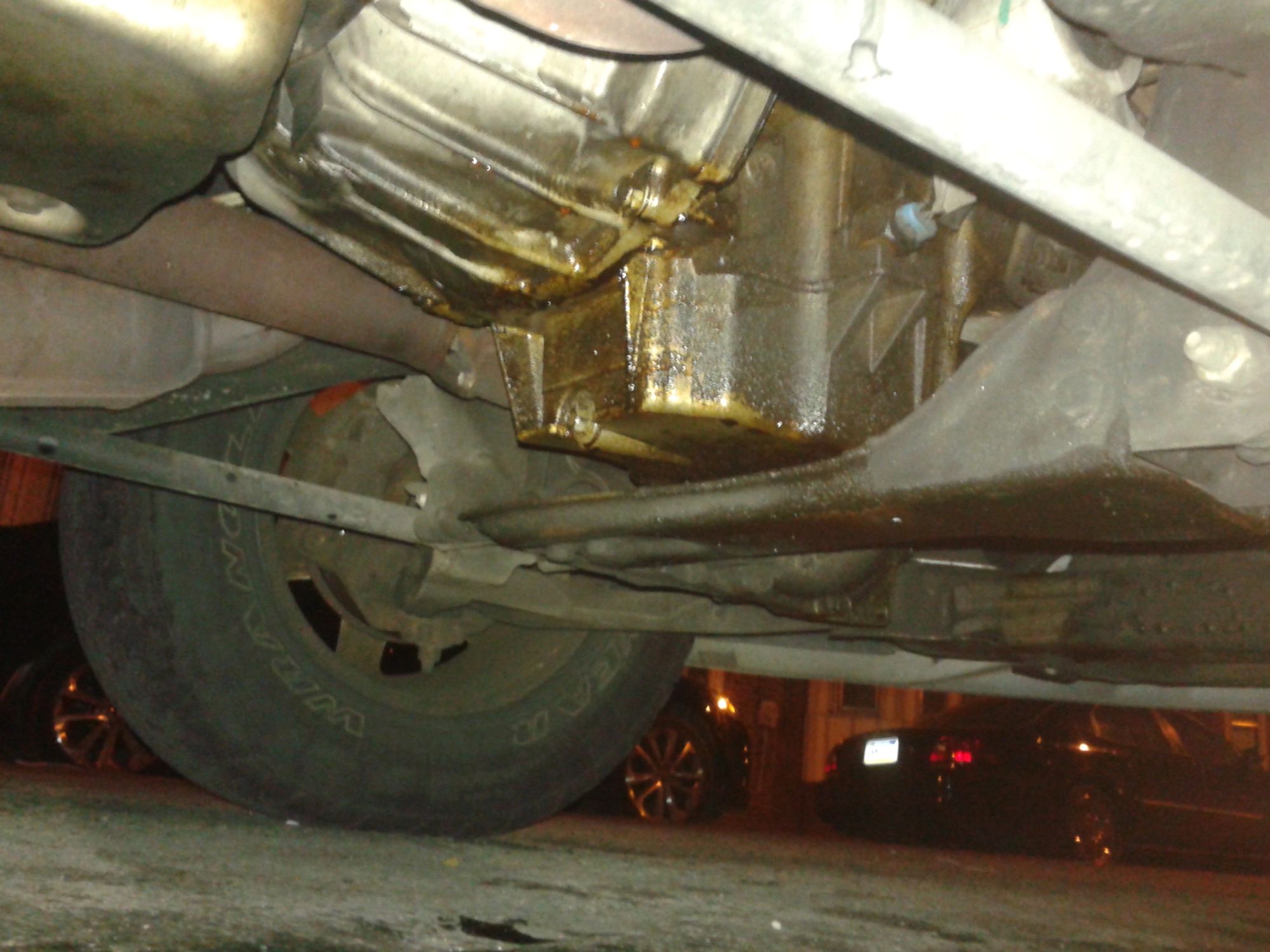

Here we go



Doesn't look good at all
Attached Thumbnails possible leak not sure-80-20160114_003851_b21a2f7405a1e409fc3263ae51620bb7ef1875a3.jpg
Old 01-16-2016, 11:11 AM
  #9
Senior Member
Posts like a Supercharger

1.8TTony's Avatar

Join Date: Jul 2015
Location: Chico, California (USA)
Posts: 160
Received 21 Likes on 19 Posts
1.8TTony will become famous soon enough1.8TTony will become famous soon enough
Default

Engine running poorly.
Leaking clear fluid.
I'm thinking coolant fluid is leaking

Low coolant can cause the engine to run poorly because the Engine Coolant Temperature (ECT) sensor isn't sending accurate info to the pcm. Check to be sure the coolant is at the proper level.

Check the 'quick connect' couplers on the heater core. When they develop leaks, the coolant will drip down and appear like the pictured above in post #8.
Old 01-16-2016, 06:21 PM
  #10
Senior Member
Posts like a 4 Banger
Thread Starter

denaliman03's Avatar

Join Date: Nov 2015
Location: Philadelphia pa
Posts: 103
Received 1 Like on 1 Post
denaliman03 is on a distinguished road
Default

That'* good cause the trans and coolant fluid look the same. I am low on coolant so that has to be leaking back,looking like it'* trans fluid seeing where the leak is at its in the middle where the trans is.
