Forced Induction All questions and problems regarding Superchargers, Turbos, NOS, ZEX, intercoolers, water injection, etc.

Low boost with my sc

Thread Tools

Search this Thread

Old 08-07-2007, 08:42 PM
  #21
Senior Member
Posts like a 4 Banger
Thread Starter

94_SSEi's Avatar

Join Date: Aug 2007
Location: Milwaukee, Wisconsin
Posts: 107
Likes: 0
Received 0 Likes on 0 Posts
94_SSEi is on a distinguished road
Default

Old 08-08-2007, 01:32 AM
  #22
Senior Member
Posts like a 4 Banger
Thread Starter

94_SSEi's Avatar

Join Date: Aug 2007
Location: Milwaukee, Wisconsin
Posts: 107
Likes: 0
Received 0 Likes on 0 Posts
94_SSEi is on a distinguished road
Default

well, i added about 2.5 to 3oz of oil to it
there is some metal flake in the supercharger oil that was in there
so i guess that means i get to do a rebuild
still have only about 2psi of boost though
Old 08-08-2007, 09:04 AM
  #23
Senior Member
Posts like a 4 Banger
Thread Starter

94_SSEi's Avatar

Join Date: Aug 2007
Location: Milwaukee, Wisconsin
Posts: 107
Likes: 0
Received 0 Likes on 0 Posts
94_SSEi is on a distinguished road
Default

is there a way to test my Boost Control Actuator to see if that is why i am only getting 2psi
Old 08-08-2007, 09:21 AM
  #24
Junior Member
Posts like a Ricer Type-R

willwren's Avatar

Join Date: Aug 2002
Posts: 11
Likes: 0
Received 4 Likes on 4 Posts
willwren is on a distinguished road
Default

We don't know if you need a rebuild yet, and even still, that'* not affecting your boost. Please go through the troubleshooting that I previously linked you to.

A little metal flake can be normal. We'll come back to that.

Start the car and idle. Pull the vacuum line off the top of the BCA (round cylinder on the front of the charger). Does the arm move fully? Put it back, it should go all the way back. Full travel. If you want to know what full travel is, you can actuate it by hand.
Old 08-08-2007, 10:32 AM
  #25
Senior Member
Posts like a 4 Banger
Thread Starter

94_SSEi's Avatar

Join Date: Aug 2007
Location: Milwaukee, Wisconsin
Posts: 107
Likes: 0
Received 0 Likes on 0 Posts
94_SSEi is on a distinguished road
Default

back in a sec
Old 08-08-2007, 10:34 AM
  #26
Senior Member
Certified Car Nut

1993 SLE's Avatar

Join Date: Oct 2003
Posts: 19,756
Likes: 0
Received 0 Likes on 0 Posts
1993 SLE is on a distinguished road
Default

WOAH...

thtat is not your BCA....look UP BY the supercharger

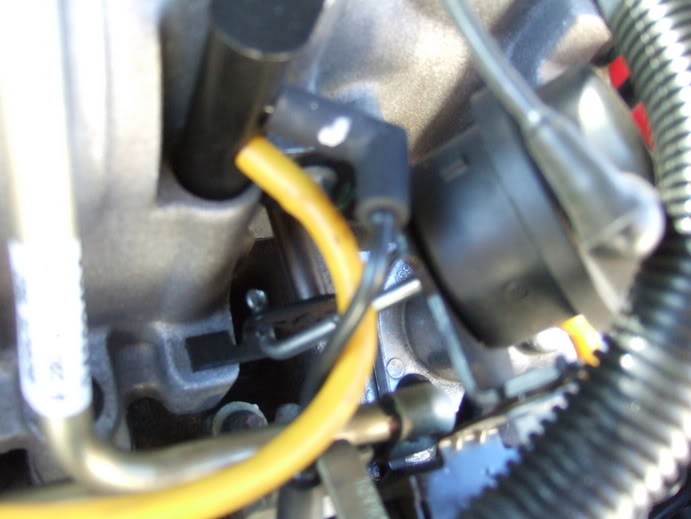

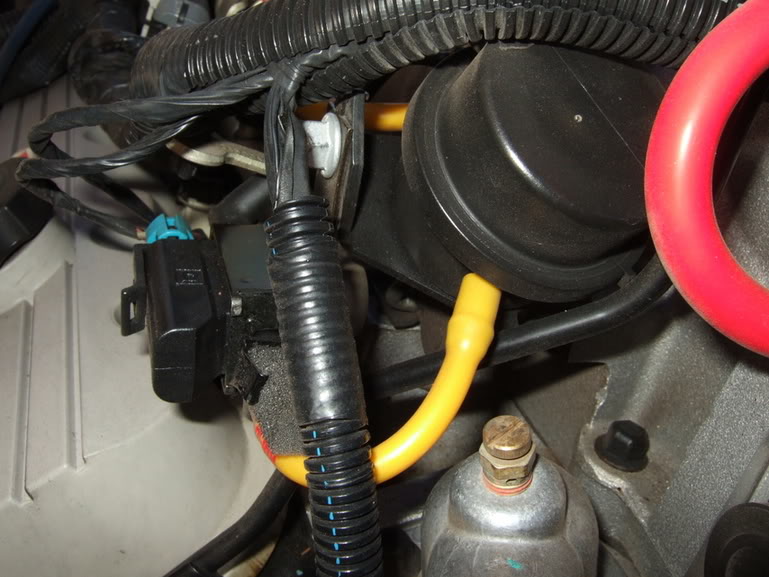

here is a pic of what your looking for

Name:  DSCF0310.jpg
Views: 18
Size:  42.4 KB

Name:  DSCF0306.jpg
Views: 20
Size:  76.9 KB
Old 08-08-2007, 10:42 AM
  #27
Senior Member
Posts like a 4 Banger
Thread Starter

94_SSEi's Avatar

Join Date: Aug 2007
Location: Milwaukee, Wisconsin
Posts: 107
Likes: 0
Received 0 Likes on 0 Posts
94_SSEi is on a distinguished road
Default

when i unplug the vacuum line the arm moves a little, but when i plug it back in, it doesnt retract, it stays all the way out
my noise on my sc goes away when i push the arm up, with the line plugged in and the car running
here is a vid of me taking off the vaccum line
http://vids.myspace.com/index.cfm?fu...0405[/img]
Old 08-08-2007, 10:44 AM
  #28
Senior Member
Certified Car Nut

J Wikoff's Avatar

Join Date: Mar 2003
Posts: 12,433
Likes: 0
Received 2 Likes on 2 Posts
J Wikoff is on a distinguished road
Default

Make sure you pull the top one off to see if how much boost you get. And then pull the bottom one of after you put the top one back on and take it for a quick spin. Pulling the bottom one will show you if the BCS is dumping.
Old 08-08-2007, 11:03 AM
  #29
Senior Member
Posts like a 4 Banger
Thread Starter

94_SSEi's Avatar

Join Date: Aug 2007
Location: Milwaukee, Wisconsin
Posts: 107
Likes: 0
Received 0 Likes on 0 Posts
94_SSEi is on a distinguished road
Default

my sc is quiet when i have the arm pushed in like this picture


this is how it sits on the car at idle
Old 08-08-2007, 11:07 AM
  #30
Senior Member
Certified Car Nut

J Wikoff's Avatar

Join Date: Mar 2003
Posts: 12,433
Likes: 0
Received 2 Likes on 2 Posts
J Wikoff is on a distinguished road
Default

At idle, it should be up. Not almost all the way down like it is there. I suspect a BCA or top BCA vac line leak.
