Default HOW to get VAT key code in column??

How do you get the column key out, (cylinder), and most of all how do you get the VATS key code in the column. I have been told a key reader is available just stick in the key and tells you the code how do get one of these?

need column key for 92 camaro''

help. please
buickapollo455 is offline   Reply With Quote
Old 08-20-2011, 03:08 PM   #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Thanked 563 Times in 481 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

a 92 would be a resistor in the key, you just take a ohm meter and read the resistance of the key, then you can put a resistor of the same value in the wires that go back to the security module. then you can use standard keys or columns or whatever you happen to be doing.
jwfirebird is offline   Reply With Quote
Old 09-09-2016, 04:01 PM   #3
Junior Member

Join Date: Sep 2016
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
johnjunsworth@hotm is on a distinguished road
Default

I am suspecting my VAT is not recognizing my factory original keys on my '92 Suburban. I was in the steering column replacing a blinker/signal switch, and now the car will not start, and the "security" light is remaining illuminated. The ignition turns the starter, and it attempts to start the engine, however, it acts as if it is not getting any fuel. Unfortunately the key does not have a visible pellet, and I believe it is hidden in the top of the key. I've contacted the dealership, and they were not helpful at all. How do I determine the OHM resistance without a visible pellet? I'd like to bypass the system, if possible, but I don't know what OHMs resistance to use. Any help would be greatly appreciated. Thanks, John
johnjunsworth@hotm is offline   Reply With Quote
Old 09-10-2016, 12:15 AM   #4
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,668
Thanked 244 Times in 201 Posts
rjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud of
Default

I was just looking at a '93 owner'* manual for the Suburban, and oddly enough, there is no discussion of an anti-theft system of any kind.

If the '92 Suburban is equipped with anything factory, it'* likely the Pass-Key 2 system, which sounds as if it has already been bypassed if your key does not have the pellet. You will need to track down where the resistor pack has been installed on the truck and tear it apart. You can read the values of the resistors that way.

Passkey 3 has the transponder in the key, and was introduced years later.
rjolly87 is offline   Reply With Quote
Old 09-10-2016, 05:18 AM   #5
Senior Member


True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,067
Thanked 411 Times in 369 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

I am not sure how you would have disturbed a VATS wire while doing the blinker switch, if you have VATS that is.
Did you see any orange wiring coming from the ignition switch while doing what you were doing?
This kind of wire.


Attached Thumbnails
HOW to get VAT key code in column??-oldsmobile_buick_cadillac_gmc_chevy_saturn_pontiac_isuzu_chevrolet_bypass_security_passlock_pass.jpg
WilliamE is offline   Reply With Quote
Old 09-12-2016, 03:15 PM   #6
Junior Member

Join Date: Sep 2016
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
johnjunsworth@hotm is on a distinguished road
Default

I found the following video posted below, and it may be an answer to my dilemma. Please give me your thoughts. The key shown in the video looks to be the same as my key.
Thanks,
John
johnjunsworth@hotm is offline   Reply With Quote
Old 09-12-2016, 03:15 PM   #7
Junior Member

Join Date: Sep 2016
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
johnjunsworth@hotm is on a distinguished road
Default

johnjunsworth@hotm is offline   Reply With Quote
Old 09-12-2016, 06:11 PM   #8
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,668
Thanked 244 Times in 201 Posts
rjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud of
Default

Can you please confirm that this is in fact a '92 Suburban please? The video linked speaks of the PassKey 3 system which is not applicable from the factory to your listed model year.
rjolly87 is offline   Reply With Quote
Old 09-13-2016, 03:31 AM   #9
Senior Member


True Car Nut

WilliamE's Avatar

Join Date: Jun 2011
Location: VA
Posts: 3,067
Thanked 411 Times in 369 Posts
WilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond reputeWilliamE has a reputation beyond repute
Default

Starting to think they may have a aftermarket remote starter installed, the key for a 92' Suburban should look nothing like that.

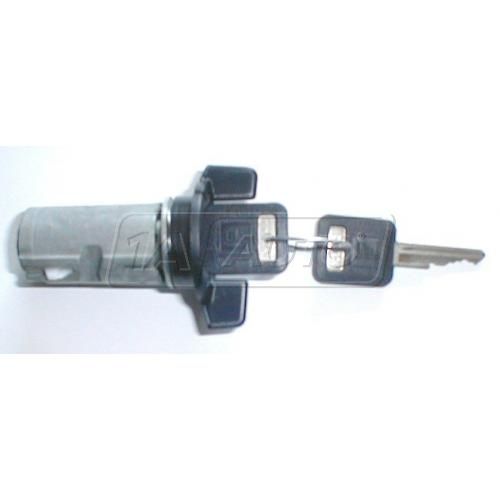

A 92' Suburban key should look like this.

Attached Thumbnails
HOW to get VAT key code in column??-large.jpg
WilliamE is offline   Reply With Quote
Old 09-13-2016, 12:56 PM   #10
Junior Member

Join Date: Sep 2016
Posts: 4
Thanks: 0
Thanked 0 Times in 0 Posts
johnjunsworth@hotm is on a distinguished road
Default

My apologies, it is a 2002 Chevy Suburban.
johnjunsworth@hotm is offline   Reply With Quote
