2004 Impala transmission.
#21
Senior Member
Posts like a Turbo
Join Date: Dec 2010
Location: New York City
Posts: 394
Likes: 0
Received 0 Likes
on
0 Posts
Thats pretty insane. I had my tranny fluid changed and was worried about the fact that the Dexron was reduced to somewhat pink sludge, but no such metal shavings. How many miles are on this guys Impala?
#24
Senior Member
True Car Nut
i think trans longevity on any car is more about the drivers right foot then mechanical issues. i put 170k on my 03 monte with not one trans issue before trading it in. my wife on the other hand, any car that is her DD hasnt made it past 150k without having to be rebuilt
#28
Retired Senior Admin
Expert Gearhead
Thread Starter
Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 28 Likes
on
24 Posts
Well, got the sub frame out in about a hour, and the trans out in another hour. Then a half hour to get it mounted on the stand and clean up a bit. Pulled it open and started pulling parts. Everything looks good. Nothing broken, bands all look good. I then grab the output shaft and turn it. Hmm, that should turn easy and smooth. Turn it again. It'* hard and not smooth at all. In fact, rather noisy. Flip the trans on the stand and remove the diff cover. I start pulling the diff out. I didn't remove the diff last week, just put the roll pin back in place. As I pull it out, a piece falls out. Hmm. Ya, I think this might be a problem.

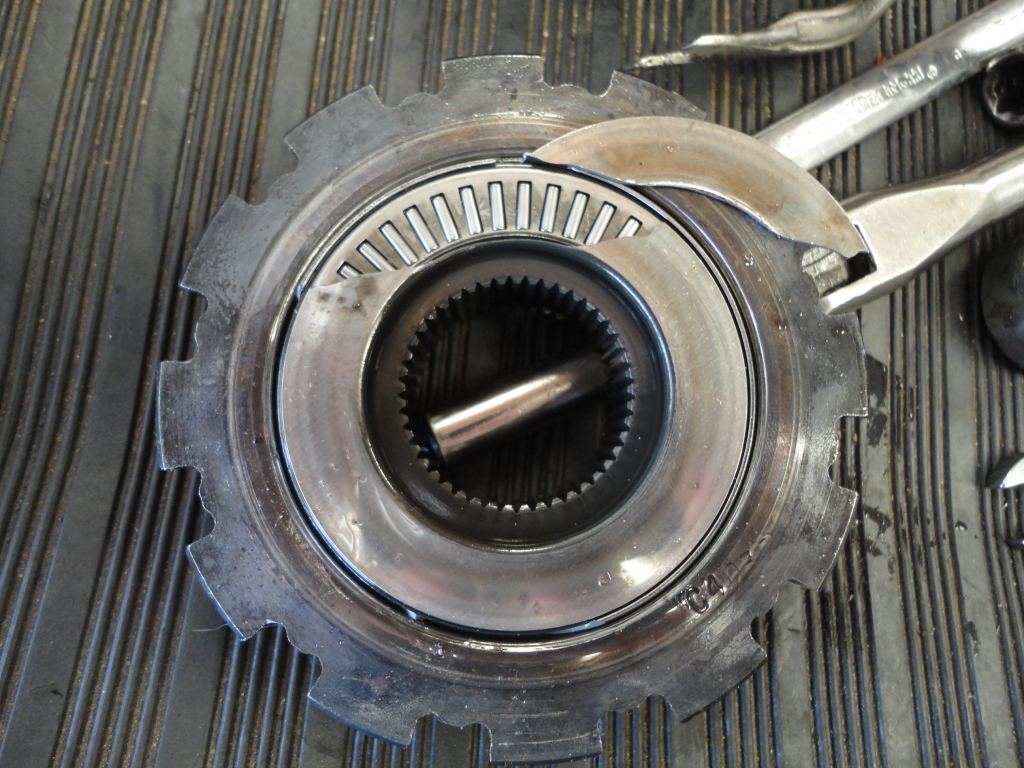

Thrust bearing under the diff.

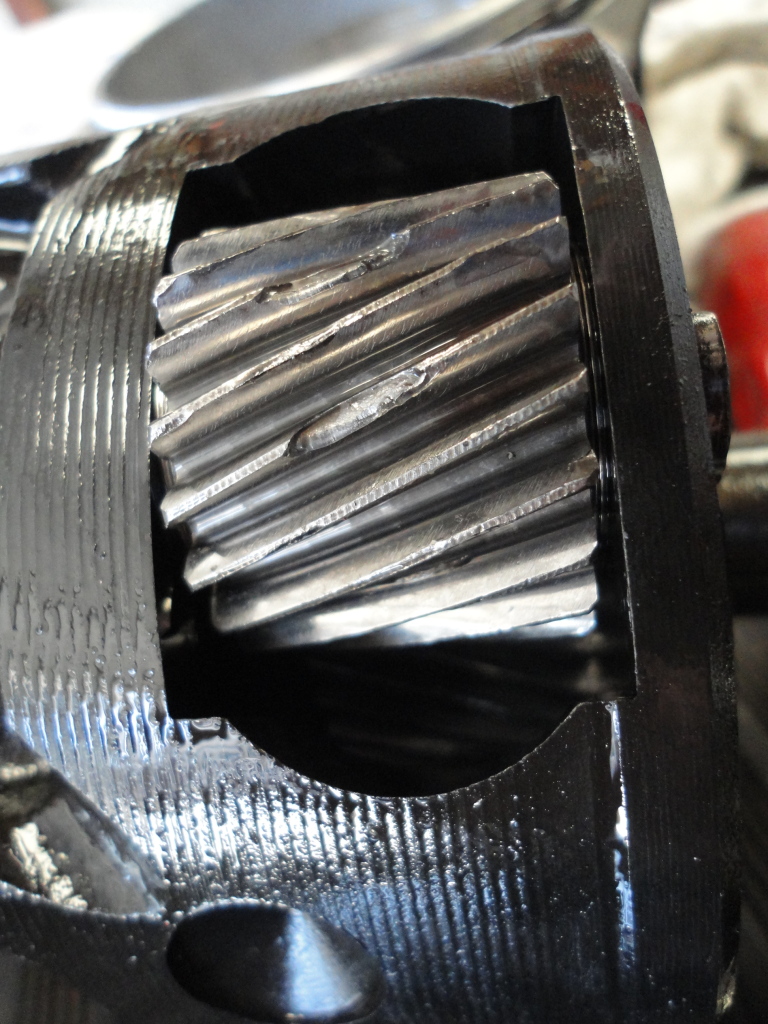

And a closer inspection of the diff. All the teeth on all 4 gears look like this.

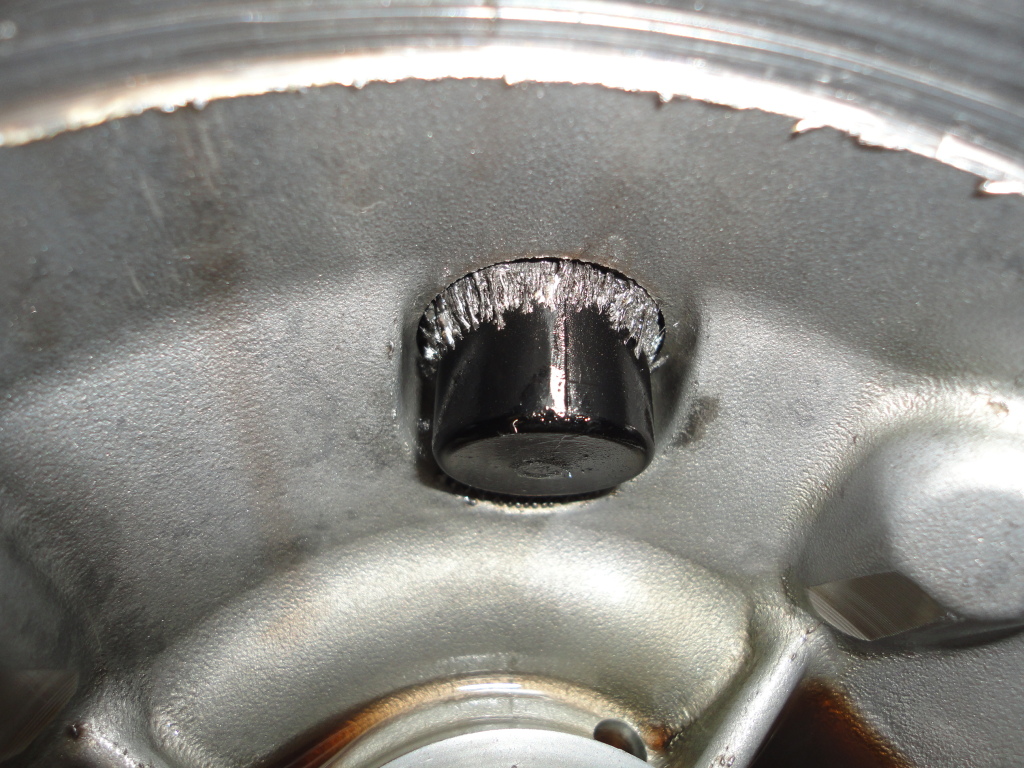

Chunks of metal

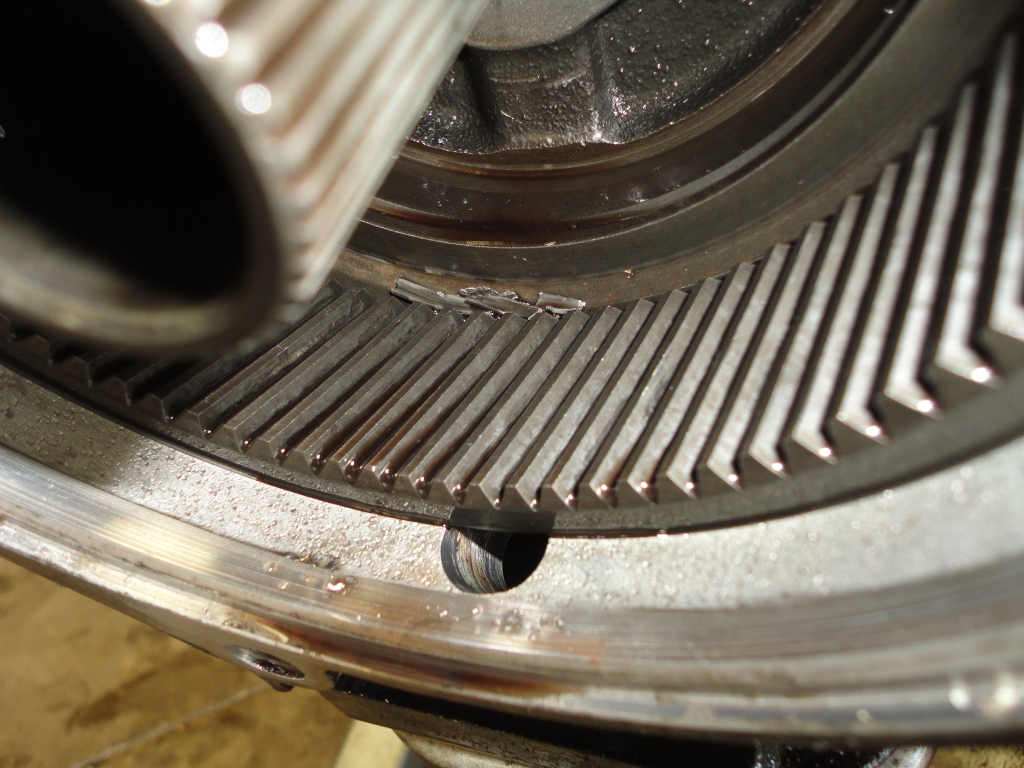

More metal
Thrust bearing under the diff.
And a closer inspection of the diff. All the teeth on all 4 gears look like this.
Chunks of metal
More metal
#30
Retired Senior Admin
Expert Gearhead
Thread Starter
Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 28 Likes
on
24 Posts
It did, that'* why it'* in my shop. I got 1st and reverse working, but wont go in to 2nd. Still trying to figure out why. I had it working in all gears. Thought it was just the roll pin. Nope, much more then that.
