1996 cavalier overheating

Thread Tools

Search this Thread

Old 02-20-2014, 11:23 AM
  #1
Junior Member
Thread Starter

stretch5881's Avatar

Join Date: Oct 2010
Posts: 8
Likes: 0
Received 0 Likes on 0 Posts
stretch5881 is on a distinguished road
Unhappy 1996 cavalier overheating

A buddy bought a 96 cavalier with a 2.2 in good shape for 200 bucks. It has a remaned head, new thermostat, and I put a new heater core in for him. The radiator fan does not kick in and there is no heat to the cabin. I have warmed up the motor and bled both bleeders at least 15 times. The temp gets high enough that it boils over and just steam blows out of the bleeders. I have gone through 4 gallons of coolant already. I did a compression test and 2 cylinders are 180, 1 at 165 and 1 at 170. I have pressure tested the cooling system to 16 pounds and it will lose 2 pounds in about 5 minutes.
What am I doing wrong? Head gasket problem pushing into the cooling system?
Old 02-20-2014, 11:46 AM
  #2
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Received 579 Likes on 497 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

look in the rad to see if the pump was circulating? see of the fan works if you put jumper wires to the battery?
Old 02-20-2014, 01:15 PM
  #3
Junior Member
Thread Starter

stretch5881's Avatar

Join Date: Oct 2010
Posts: 8
Likes: 0
Received 0 Likes on 0 Posts
stretch5881 is on a distinguished road
Default

This one fills from the overflow bottle. The radiator has no cap so I can't see circulation.
I haven't worked on the fan yet.
Old 02-20-2014, 01:34 PM
  #4
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Received 579 Likes on 497 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

how about once the engine warms up you should feel heat in the rad and such if the pump is circulating properly, seems like something is up with that the more i think about it because the heat in the car doesnt have anything to do with the fan or fan switch for the rad
Old 02-20-2014, 01:41 PM
  #5
Junior Member
Thread Starter

stretch5881's Avatar

Join Date: Oct 2010
Posts: 8
Likes: 0
Received 0 Likes on 0 Posts
stretch5881 is on a distinguished road
Default

The radiator gets warm when the thermostat opens. I mentioned no heat in the car because it acts airlocked.
Old 02-20-2014, 01:57 PM
  #6
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Received 101 Likes on 86 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

Sounds like a water not circulating through. Ive had a few water pumps where the pump would turn on the shaft or the fins would be completely gone.
Old 02-20-2014, 02:00 PM
  #7
Junior Member
Thread Starter

stretch5881's Avatar

Join Date: Oct 2010
Posts: 8
Likes: 0
Received 0 Likes on 0 Posts
stretch5881 is on a distinguished road
Default

I'm pretty sure it'* circulating. The problem is that I can't seem to get the air out of the system.
Old 02-20-2014, 08:16 PM
  #8
Senior Member
Posts like a Turbo

chevy82's Avatar

Join Date: Jan 2014
Location: Missouri
Posts: 396
Received 101 Likes on 86 Posts
chevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of lightchevy82 is a glorious beacon of light
Default

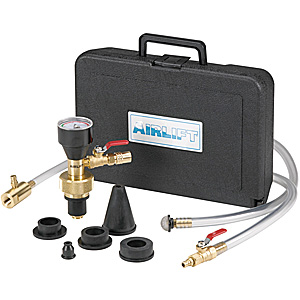

That'* when this tool comes in handy. Sucks all the air out and refills the cooling system without any air pockets.
Attached Thumbnails 1996 cavalier overheating-uvu550000.jpg
Old 02-21-2014, 08:08 AM
  #9
Senior Member
True Car Nut

jwfirebird's Avatar

Join Date: Dec 2009
Location: western,ny state
Posts: 9,616
Received 579 Likes on 497 Posts
jwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond reputejwfirebird has a reputation beyond repute
Default

there is a cap somewhere even if its not on the rad, so you can run it with that off and the back of the car at a downward angle. if you do that and you filled it with the bleeders open, thats not the issue
Old 02-21-2014, 08:33 AM
  #10
Senior Member
Posts like a Supercharger

tsaw5500's Avatar

Join Date: Aug 2013
Posts: 174
Received 7 Likes on 5 Posts
tsaw5500 is on a distinguished road
Default

cavaliers can be hard to bled the cooling system.jack up the front right side of vehicle that usually helps.
