Signal Mirrors??
All,
I saw a Lesabre with Red Cadillac Deville style signals in the side view mirror. My car does have that. Was it an option? How do I get a pair? Will mirrors from another GM car fit the Lesabre?
Z
I saw a Lesabre with Red Cadillac Deville style signals in the side view mirror. My car does have that. Was it an option? How do I get a pair? Will mirrors from another GM car fit the Lesabre?
Z
#4
Retired Senior Admin
Expert Gearhead
Join Date: May 2006
Location: Sheboygan Wisconsin
Posts: 29,661
Likes: 0
Received 28 Likes
on
24 Posts
Found a thread, but it'* not a lot of information, but might help.
https://www.gmforum.com/showthread.p...=signal+mirror
https://www.gmforum.com/showthread.p...=signal+mirror
#6
DINOSAURUS BOOSTUS
Expert Gearhead
Here ya go. Dan..I'll toss it in GH as well
LED pods were from an 2004 Cadillac DTS.
Mirrors were found on Century/Regal.

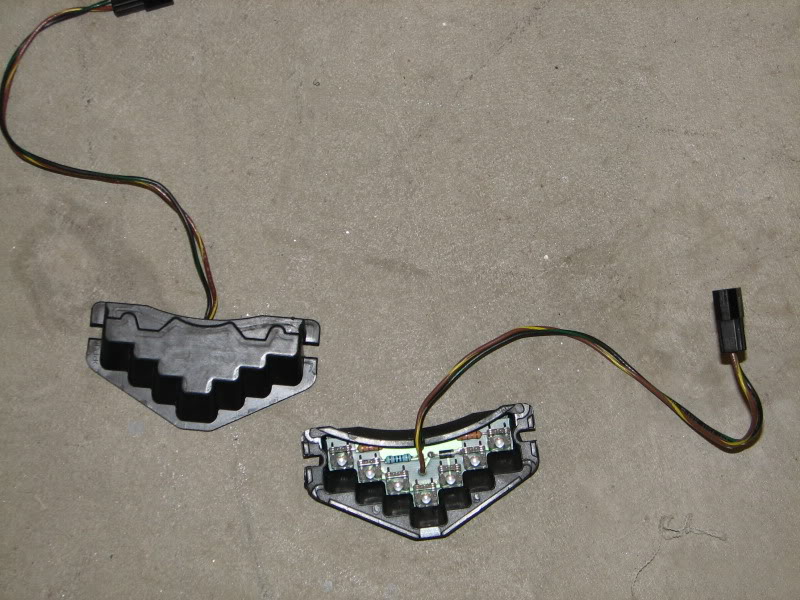

LED Pods
I found that the mirrors with straight lines going up and down them were much easier to use/mod the heater than the other zigzag version
Up/Down heater
Zigzag heater

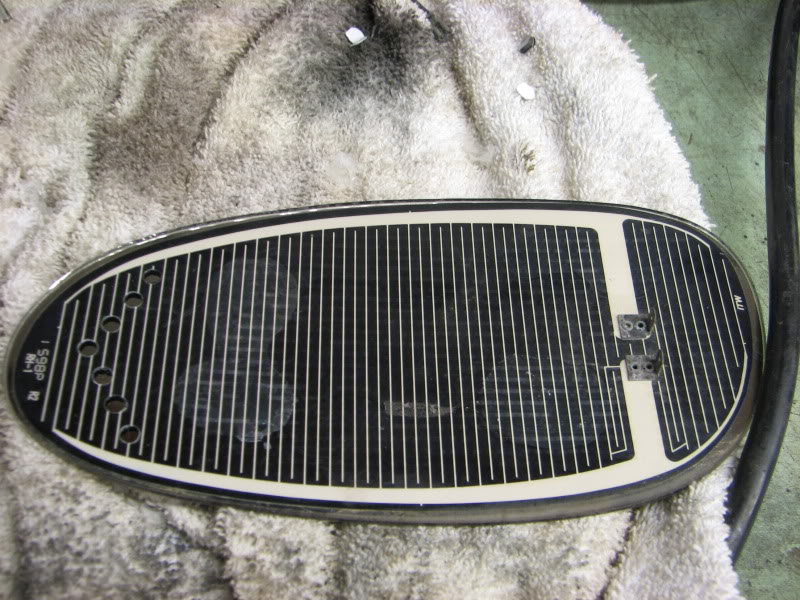

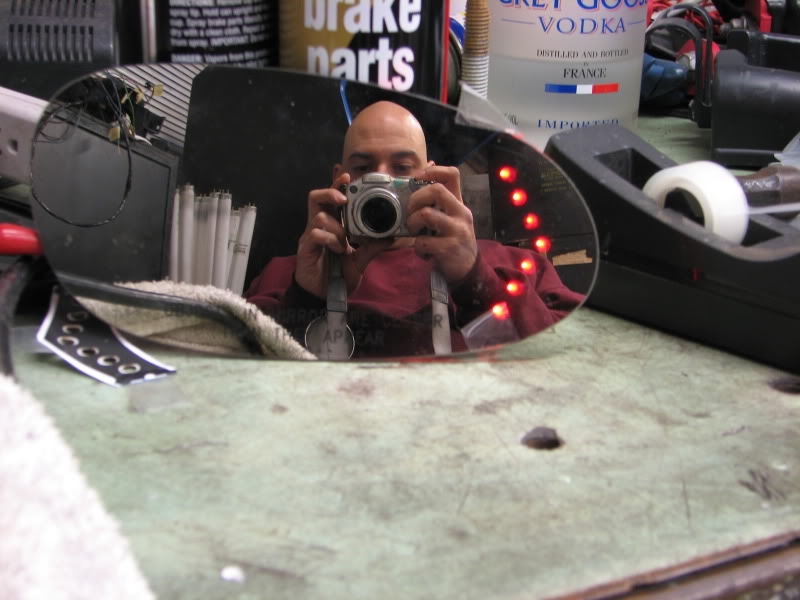

Upon trying to peel the heater in the zigzag, I found that the coating holding it to the mirror would have spots where it no longer covered. Illuminating the LED'* would show the areas where the coating had peeled. It looked bad up close. Looking for a method of making holes w/o lifting the heater, I came across a set of leather punches. They don't actually cut, so I used a torch to heat the end and melt the heater with the end. This gave me perfect circles. Cleaned the goop from the circles and illuminated, perfect.

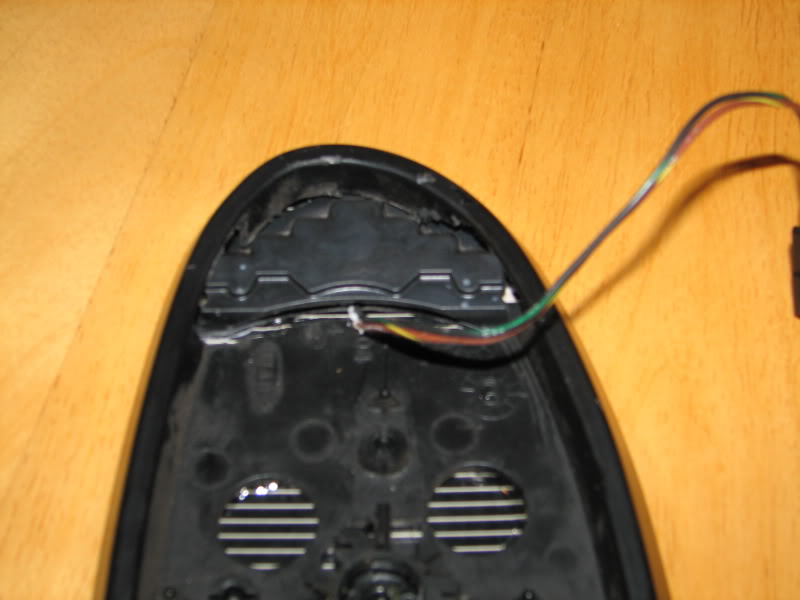

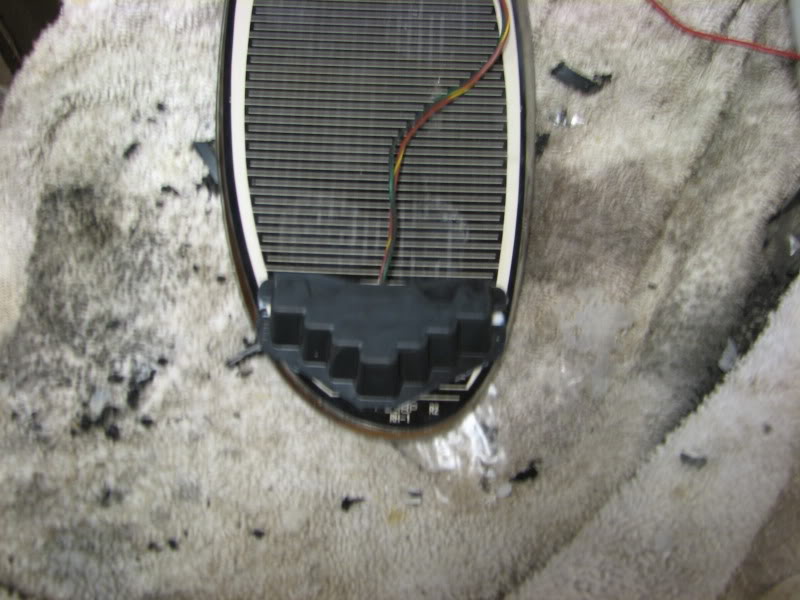

Placed the LED on and gooped in place

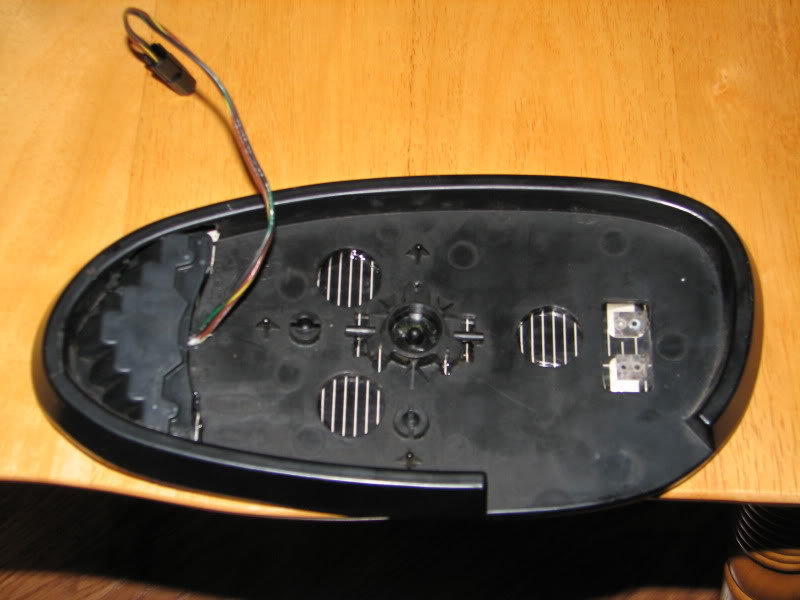

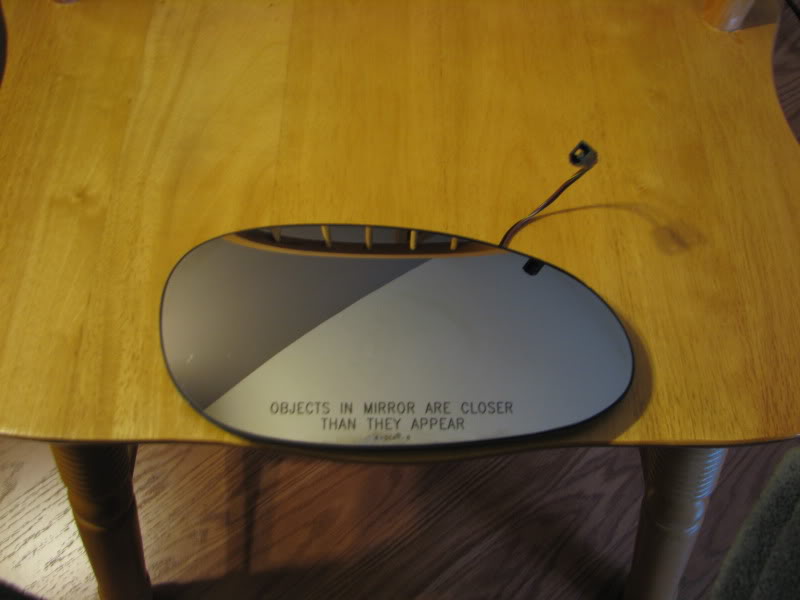

Gooped the backing onto the mirror, the final product is ready to be put into the car.
LED pods were from an 2004 Cadillac DTS.
Mirrors were found on Century/Regal.
LED Pods
I found that the mirrors with straight lines going up and down them were much easier to use/mod the heater than the other zigzag version

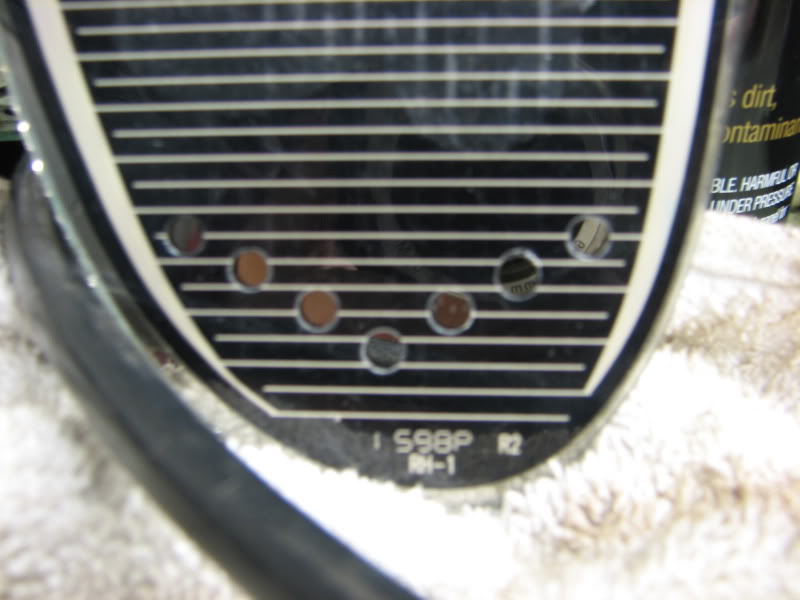

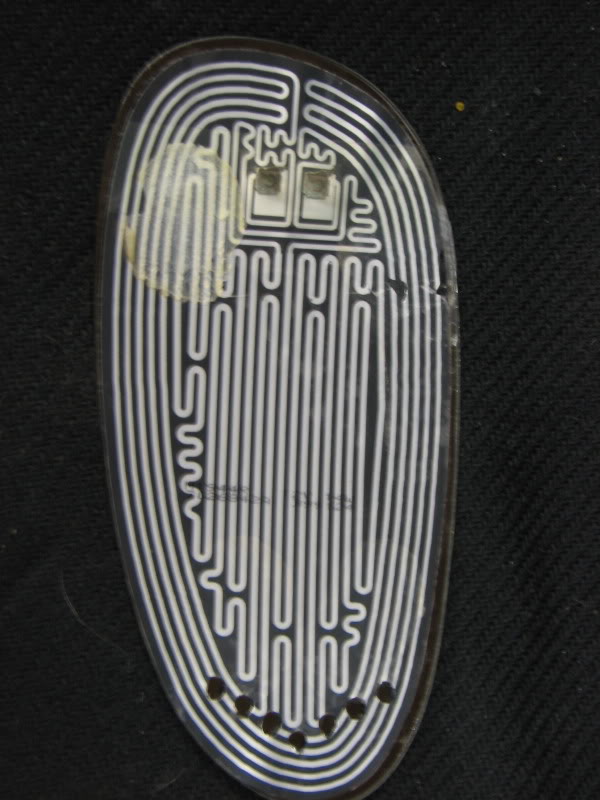

Up/Down heater
Zigzag heater
Upon trying to peel the heater in the zigzag, I found that the coating holding it to the mirror would have spots where it no longer covered. Illuminating the LED'* would show the areas where the coating had peeled. It looked bad up close. Looking for a method of making holes w/o lifting the heater, I came across a set of leather punches. They don't actually cut, so I used a torch to heat the end and melt the heater with the end. This gave me perfect circles. Cleaned the goop from the circles and illuminated, perfect.
Placed the LED on and gooped in place

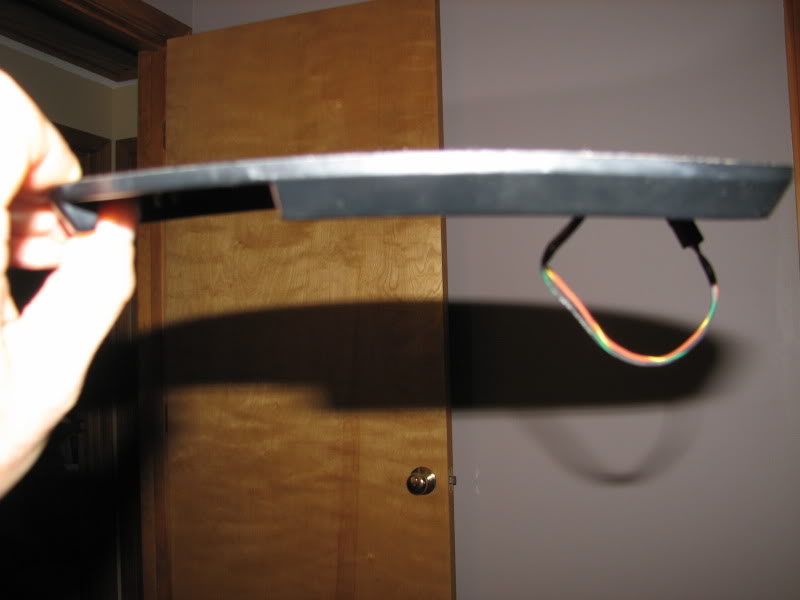

Gooped the backing onto the mirror, the final product is ready to be put into the car.
