Buick When starting new posts, please specify YEAR, MAKE, MODEL, ENGINE type, and whatever modifications you have made.

Losing a little coolant and temps are spiking. 98 PA

Thread Tools

Search this Thread

Old 03-29-2008, 10:39 AM
  #11
RIP
True Car Nut

Archon's Avatar

Join Date: Jul 2004
Location: Grand Rapids, Mi
Posts: 5,656
Likes: 0
Received 1 Like on 1 Post
Archon is on a distinguished road
Default

The elbows are the same. I'm not sure when the change over may have been for the PA on whether or not it has the lower elbow, or just needs the O-ring. I ran into the same problem at Advance locally. However, Autozone and PepBoys both carry them, as Bill mentioned, in the Dorman "Help" cards section.
Old 03-29-2008, 10:59 AM
  #12
Senior Member
True Car Nut

bill buttermore's Avatar

Join Date: Mar 2004
Location: Ames, Iowa
Posts: 3,066
Likes: 0
Received 3 Likes on 3 Posts
bill buttermore is on a distinguished road
Default

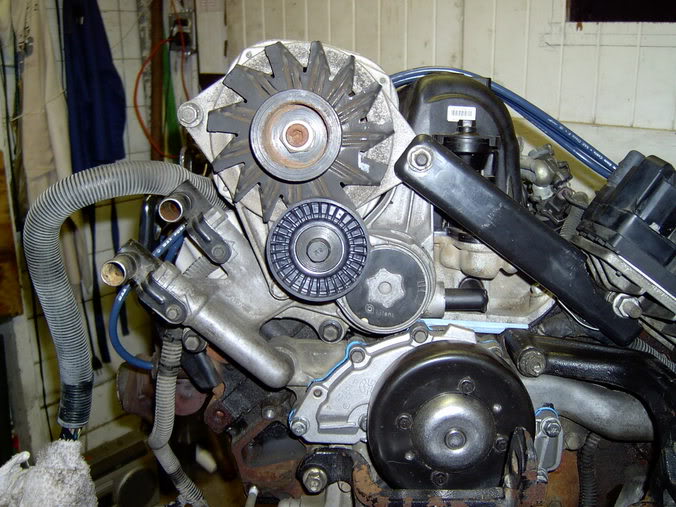

This image shows the older tensioner assembly that uses an o-ring for the connection to the water pump and a plastic elbow for the connection to the LIM. The lower o-ring seals the return line from the heater core (the lower of the two heater hose connections). The joint is at the 7:00 O'Clock position relative to the black plastic pulley on the tensioner assembly.

Name:  Tensioner.jpg
Views: 193
Size:  85.1 KB
Old 03-29-2008, 05:54 PM
  #13
Senior Member
True Car Nut
Thread Starter

GonneVille's Avatar

Join Date: Apr 2004
Posts: 4,816
Likes: 0
Received 0 Likes on 0 Posts
GonneVille is on a distinguished road
Default

Yup, that'* the one I've got.
Old 03-30-2008, 12:32 AM
  #14
Senior Member
True Car Nut
Thread Starter

GonneVille's Avatar

Join Date: Apr 2004
Posts: 4,816
Likes: 0
Received 0 Likes on 0 Posts
GonneVille is on a distinguished road
Default

As it stands now:
Name:  0329081937.jpg
Views: 283
Size:  85.1 KB
I'll be back at it in the morning. Still got a lot to do, belts, front motor mount, */C reassembly, yada, yada, yada...
Covered up the intake, closed the hood, called it a night...
