Default 93 Buick Park Avenue turn over but no start

I have a 93 Buick Park Ave 3.8l, turns over but no start, I have fuel to the rail, I've replaced the coil packs and plate. I've replaced the crankshaft sensor. It'* got a great battery. Still no spark.. Could it be the camshaft sensor and where is it located on this model
hammerdown is offline   Reply With Quote
Old 10-15-2016, 12:02 PM   #2
Senior Member
True Car Nut

rjolly87's Avatar

Join Date: Jun 2003
Location: Las Cruces, NM
Posts: 6,596
Thanked 224 Times in 182 Posts
rjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud ofrjolly87 has much to be proud of
Default

The camshaft sensor is on the timing cover, above the harmonic balancer. It has no effect on the ignition system however. It'* only used to reference when TDC for #1 cylinder is passing by to synchronize the sequential fuel injection. The Crank position sensor does everything ignition related.

I would check over wiring and connectors. Also make sure you are getting power where you need it, and check grounds in that area as well.
rjolly87 is offline   Reply With Quote
The Following User Says Thank You to rjolly87 For This Useful Post:
Tech II (10-16-2016)
Old 10-16-2016, 08:57 PM   #3
Senior Member


Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 1,657
Thanked 670 Times in 510 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

I agree with Rjolly87....cam sensor has nothing to do with spark.....

The crank sensor, ignition module, coils and wiring between them is what creates the spark....

The crank sensor has to trigger the ICM which controls the coils....you have to test for a signal for the crank sensor by manually rotating the crank....if the signal is there, then if power and ground is is present in the harness to the ICM, then you need an ICM....
Tech II is offline   Reply With Quote
Old 10-16-2016, 09:05 PM   #4
Junior Member

Join Date: Oct 2016
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
hammerdown is on a distinguished road
Default

Quote:
Originally Posted by Tech II View Post
I agree with Rjolly87....cam sensor has nothing to do with spark.....

The crank sensor, ignition module, coils and wiring between them is what creates the spark....

The crank sensor has to trigger the ICM which controls the coils....you have to test for a signal for the crank sensor by manually rotating the crank....if the signal is there, then if power and ground is is present in the harness to the ICM, then you need an ICM....
I've replaced the coils, and the icm, and the crank sensor. Still no start. The connections seen to all be tight w/ no corrosion. Could it be a faulty replacement part? I'm at a loss on this car.
hammerdown is offline   Reply With Quote
Old 10-16-2016, 11:44 PM   #5
Member
Posts like a V-Tak

Join Date: Oct 2010
Location: Georgia
Posts: 56
Thanked 14 Times in 13 Posts
joeld will become famous soon enough
Default

Having fuel at the rail is different from having the correct pressure, have you checked this?


Joel
joeld is offline   Reply With Quote
Old 10-17-2016, 04:17 AM   #6
Junior Member

Join Date: Oct 2016
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
hammerdown is on a distinguished road
Default

Quote:
Originally Posted by joeld View Post
Having fuel at the rail is different from having the correct pressure, have you checked this?


Joel
Yes I have. I have good pressure, the issue is there is no spark, and I can't figure out why.
hammerdown is offline   Reply With Quote
Old 10-17-2016, 11:57 AM   #7
Member
Posts like a V-Tak

Join Date: Oct 2010
Location: Georgia
Posts: 56
Thanked 14 Times in 13 Posts
joeld will become famous soon enough
Default

This might help.

http://easyautodiagnostics.com/gm/3....-sensor-test-1

Joel
joeld is offline   Reply With Quote
Old 10-18-2016, 02:16 PM   #8
Senior Member


Certified GM nut

Tech II's Avatar

Join Date: Feb 2014
Location: Worcester, Ma.
Posts: 1,657
Thanked 670 Times in 510 Posts
Tech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond reputeTech II has a reputation beyond repute
Default

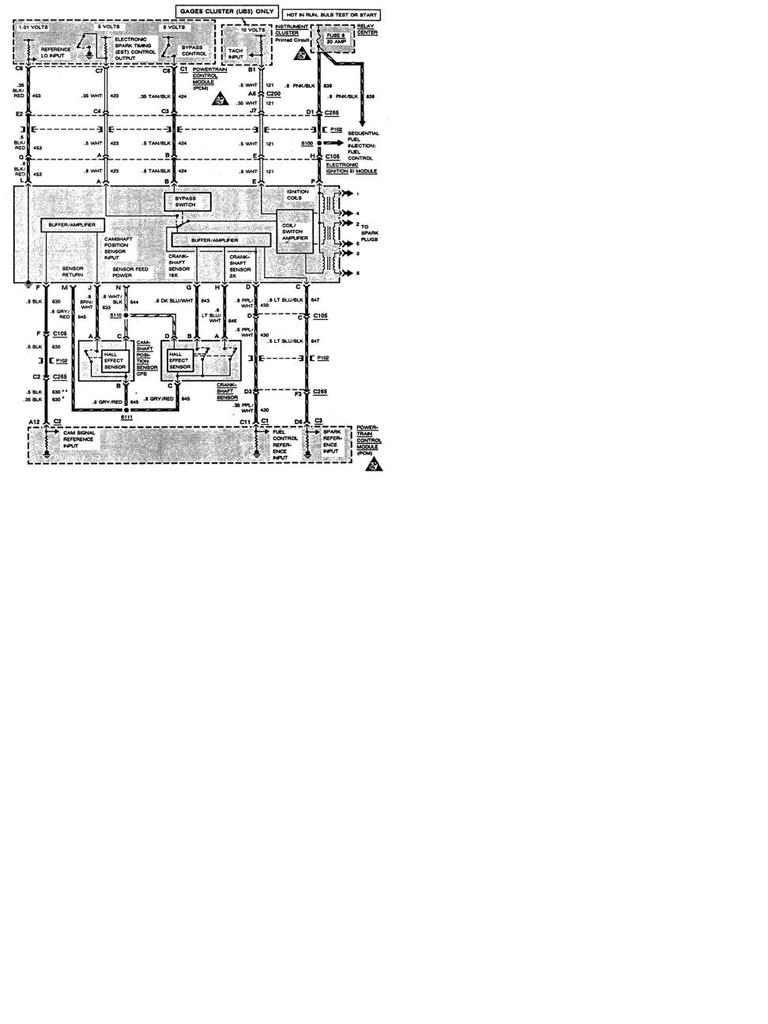

If the parts replaced are all good then it'* either a wiring problem, connection problem, or power/ground problem....

Click the image to open in full size.
Attached Thumbnails
93 Buick Park Avenue turn over but no start-icm.jpg
Tech II is offline   Reply With Quote
