Old 08-28-2016, 10:09 AM   #11
Retired Administrator


True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,851
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

Yes, old thread but I am going to bring it up. Very frustrating the OP never posted the solution. This is a somewhat common problem, yet after finding dozens of threads on the issue not one OP ever posted the fix. I am having this issue on my 2005 Bonneville SLE and am going to be focused on loose, broken wires, specifically in the harness between the cab and the drivers door. The harness is brutal to exam.

I am not looking at a water under the carpet issue, as when the radio stays on with the car off after exiting the vehicle is not typically a water under the carpet issue.
GunsOfNavarone is offline   Reply With Quote
Old 08-28-2016, 01:33 PM   #12
Retired Administrator


True Car Nut

GunsOfNavarone's Avatar

Join Date: Apr 2009
Location: Williamsport, PA
Posts: 2,851
Thanked 167 Times in 129 Posts
GunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud ofGunsOfNavarone has much to be proud of
Default

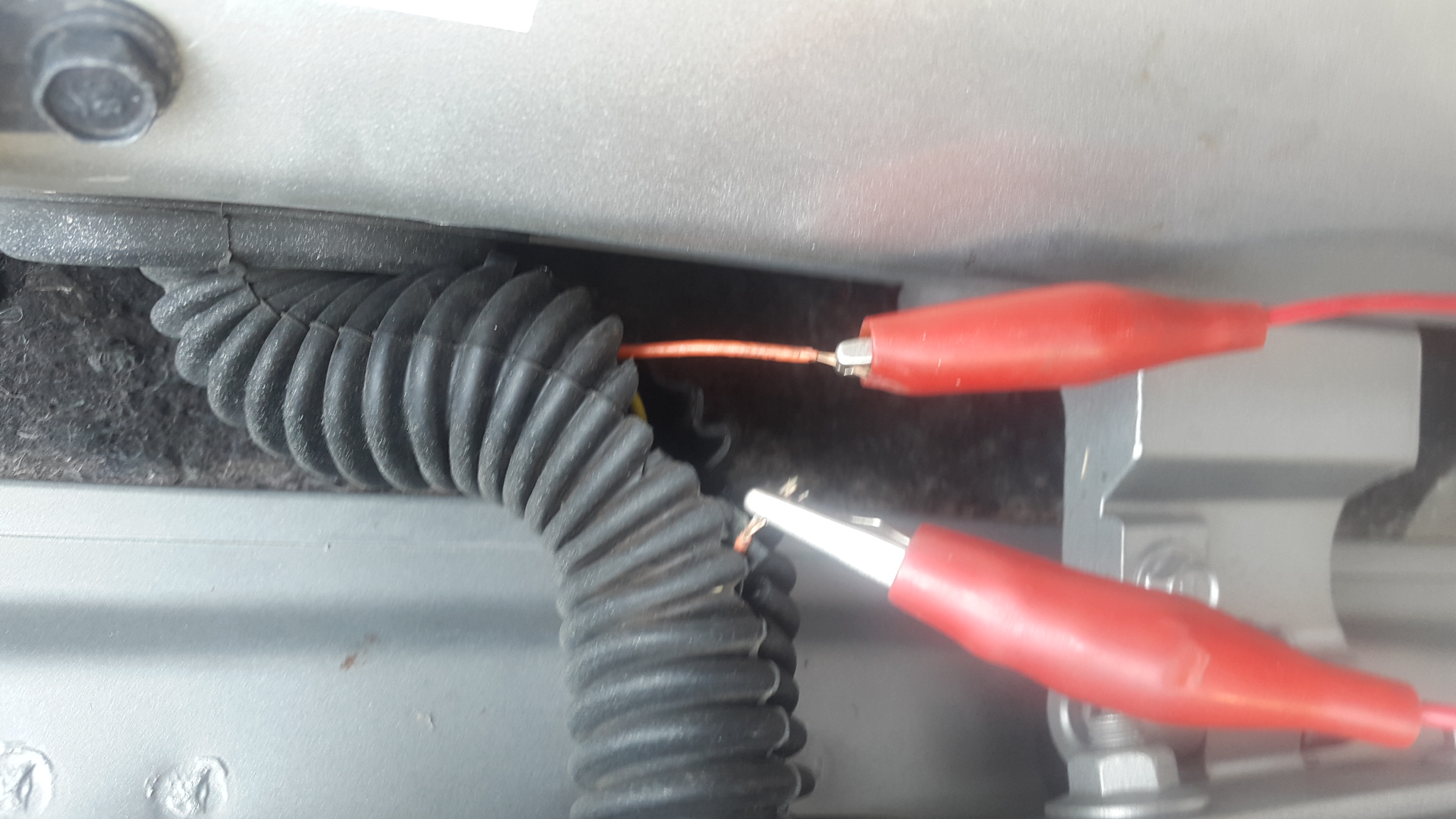

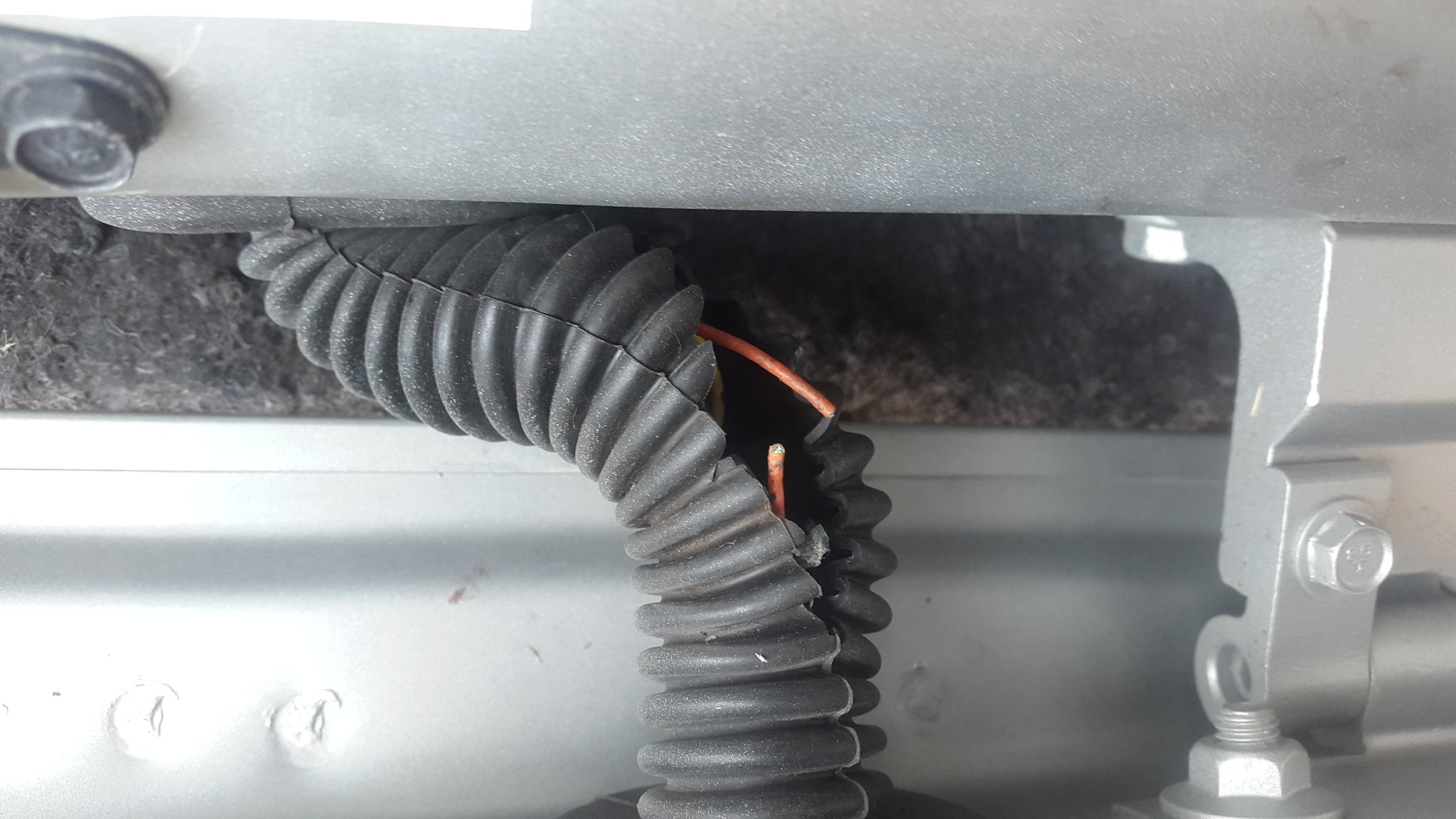

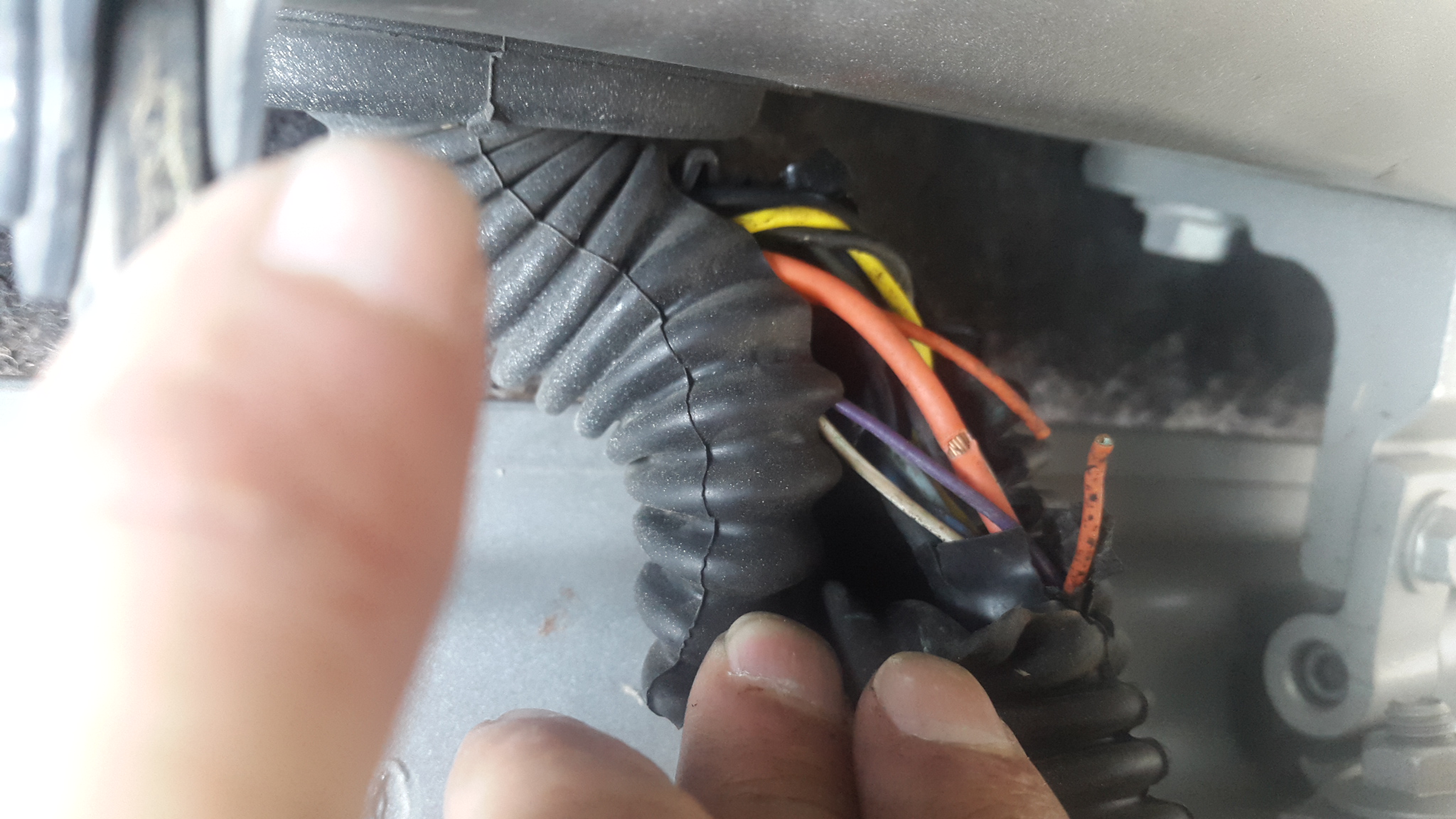

Just finished the troubleshooting and repair. It was the 12v supply to the driver door module was split in half inside the harness between the door and the body. Did not measure 12v at the small orange wire at the driver door module, did see 12 v at the door module fuse, so cut the harness protector with a razor blade and there was an open orange wire. Measure 12v at one side of the open, nothing at the other. Put in a alligator clip and everything worked, so put in a wire jumper, soldered the ends, electric tape, and put it all back together. Also notice the thick orange wire which provided 12v to the window actuators had a cut in the insulation, so I put some tape to reduce further damage.

Spent a day on-line trying to identify the issue. Fairly common issue, yet almost nobody ever posted the solution.
Attached Thumbnails
windows won't go down, radio stays on, keyless entry not functioning-20160828_095602.jpg   windows won't go down, radio stays on, keyless entry not functioning-20160828_100429.jpg   windows won't go down, radio stays on, keyless entry not functioning-20160828_095652.jpg
GunsOfNavarone is offline   Reply With Quote
The Following User Says Thank You to GunsOfNavarone For This Useful Post:
WilliamE (08-28-2016)
