Audio short out problem

Thread Tools

Search this Thread

Old 04-17-2006, 04:39 PM
  #1
Senior Member
Posts like a Turbo
Thread Starter

c0rsa180's Avatar

Join Date: Aug 2004
Location: Long Island, NY
Posts: 285
Likes: 0
Received 0 Likes on 0 Posts
c0rsa180 is on a distinguished road
Default Audio short out problem

Ok so ive been having problems with my audio if i take the volume past a certain point it will just short out the whole system and restart everything...i have the deck listed in my sig...so at first i thought it was just that my deck was overpowering my stock speakers so i upgraded to the speakers listed in my sig, but im still getting the problem...does this mean that the deck is just not powerful enough to handle the volume, cause im thinking of upgrading my deck come the summer...

any suggestions are welcome and thanks in advance
Old 04-17-2006, 04:41 PM
  #2
Senior Member
Posts like a Turbo
Thread Starter

c0rsa180's Avatar

Join Date: Aug 2004
Location: Long Island, NY
Posts: 285
Likes: 0
Received 0 Likes on 0 Posts
c0rsa180 is on a distinguished road
Default

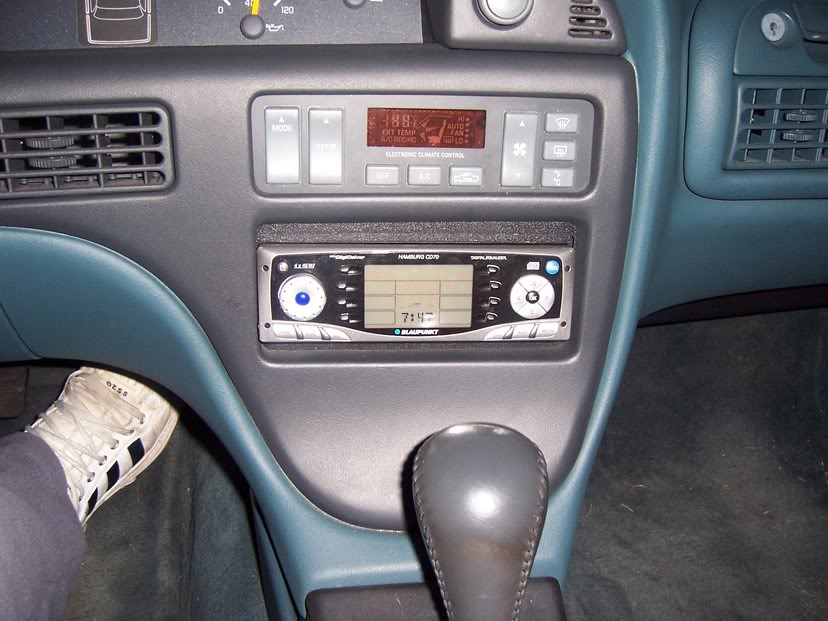

o and heres a picture of the deck incase u wanna know what it looks like

Name:  0d3164ad.jpg
Views: 90
Size:  91.7 KB
Old 04-17-2006, 05:26 PM
  #3
Senior Member
True Car Nut

sandrock's Avatar

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Likes: 0
Received 1 Like on 1 Post
sandrock is on a distinguished road
Default

Several things I did when I did my install was to run all new power and ground wires as the stock ones really don't deliver the goods when it comes time to upgrade the HU. Also, your HU may have a feature that powers it down when it gets too hot....but then again, you say that it resets everything once it looses power, which tells me the constant hot or ground is at fault....but to be safe, I would try to wire in a small fan (like a CPU fan) to blow air on the HU to cool it down if it is getting a bit too warm.
Old 04-17-2006, 05:30 PM
  #4
Senior Member
True Car Nut

corvettecrazy's Avatar

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Likes: 0
Received 0 Likes on 0 Posts
corvettecrazy is on a distinguished road
Default

pull the HU out and balence it on the shifter. Do it again. Does it get hot? does moving the wires change anything?

When you say reset does it mean that it shuts off and re-starts or you lose all your settings kind of reset
Old 04-17-2006, 06:57 PM
  #5
Senior Member
Posts like a Turbo
Thread Starter

c0rsa180's Avatar

Join Date: Aug 2004
Location: Long Island, NY
Posts: 285
Likes: 0
Received 0 Likes on 0 Posts
c0rsa180 is on a distinguished road
Default

yes it does get hot...and it just restarts with all the same settings
Old 04-17-2006, 07:08 PM
  #6
Senior Member
True Car Nut

corvettecrazy's Avatar

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Likes: 0
Received 0 Likes on 0 Posts
corvettecrazy is on a distinguished road
Default

Originally Posted by c0rsa180
yes it does get hot...and it just restarts with all the same settings
then it either over heats or cuts out to prevent blowing the speakers.
Old 04-17-2006, 08:29 PM
  #7
Senior Member
Posts like a Camaro

Plurr's Avatar

Join Date: Feb 2003
Location: Indianapolis, IN / West Lafayette
Posts: 1,004
Likes: 0
Received 0 Likes on 0 Posts
Plurr is on a distinguished road
Default

make sure none of your speaker wires are shorting out
Old 04-18-2006, 10:55 AM
  #8
Senior Member
True Car Nut

sandrock's Avatar

Join Date: Aug 2004
Location: In your garage, swipin' da lug nutz
Posts: 3,067
Likes: 0
Received 1 Like on 1 Post
sandrock is on a distinguished road
Default

You had this problem before you changed your speakers, and it only happens when you really crank the volume. I really think you need to upgrade your power and ground wires, which will eliminate power starvation (this was mentioned in a post some time ago, can't remember the original author of it though). This may also be why you are overheating, though I could be wrong on that...it may just be that Blaus run hot
Old 04-18-2006, 01:35 PM
  #9
Senior Member
True Car Nut

BLACK94SSEi's Avatar

Join Date: Feb 2006
Location: Melrose
Posts: 4,596
Likes: 0
Received 0 Likes on 0 Posts
BLACK94SSEi is on a distinguished road
Default

Im betting it is a mismatched speaker wire. Check the polarity on all speaker wires and make sure they are on the right post. + to + and - to - your HU should not be shutting down like that when you turn up the volume.

Another thing to consider is if you added a tweeter to the fronts, you may have changed the Ohm Load to the HU causing it to Heat up allot faster which makes it shut down.

Check the wire polarity both at the speakers and at the HU and post your findings.
Old 04-18-2006, 02:18 PM
  #10
Senior Member
True Car Nut

corvettecrazy's Avatar

Join Date: Jun 2004
Location: Rochester, NY (college)
Posts: 6,182
Likes: 0
Received 0 Likes on 0 Posts
corvettecrazy is on a distinguished road
Default

wiring a speaker backwards will do nothing but move the speaker in the opposite direction of the rest. And will likely cancel out sound waves.
