[b]Fog Lights out![/b]

Thread Tools

Search this Thread

Old 12-20-2004, 01:10 PM
  #1
Junior Member
Thread Starter

Sicpupp's Avatar

Join Date: Dec 2004
Location: Fort Jackson, SC
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Sicpupp is on a distinguished road
Default [b]Fog Lights out![/b]

Need help
My 01 SSEi fog lights are not working. The left side stop working first, so I pluged in the bulb from the right side to check if the bulb was blown. The bulb is good it worked! But when I pluged the bulb back in its original side it didn't work! Now both fog lights are out. can someone help? :( :?:
Old 12-20-2004, 01:13 PM
  #2
Senior Member
Certified Car Nut

1993 SLE's Avatar

Join Date: Oct 2003
Posts: 19,756
Likes: 0
Received 0 Likes on 0 Posts
1993 SLE is on a distinguished road
Default

check the fuses first
Old 12-20-2004, 01:31 PM
  #3
Junior Member
Thread Starter

Sicpupp's Avatar

Join Date: Dec 2004
Location: Fort Jackson, SC
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Sicpupp is on a distinguished road
Default

Fuses check out fine. Is there a relay that control the fog lights?
Old 12-20-2004, 01:55 PM
  #4
Senior Member
Certified Car Nut

1993 SLE's Avatar

Join Date: Oct 2003
Posts: 19,756
Likes: 0
Received 0 Likes on 0 Posts
1993 SLE is on a distinguished road
Default

nope the fogs are controlled by the fuse. any chance that it is still under warrenty??
Old 12-20-2004, 09:47 PM
  #5
Junior Member
Thread Starter

Sicpupp's Avatar

Join Date: Dec 2004
Location: Fort Jackson, SC
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Sicpupp is on a distinguished road
Default

No I'm gone to be on my own with one, I have 39K on it. But thanks for your help Boss.
Old 12-20-2004, 10:47 PM
  #6
Senior Member
True Car Nut

PontiacDad's Avatar

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Likes: 0
Received 0 Likes on 0 Posts
PontiacDad is on a distinguished road
Default

Yes there is a relay in the under hood fuse box. Check the back of the fuse box cover for a ledgend to which one it is.

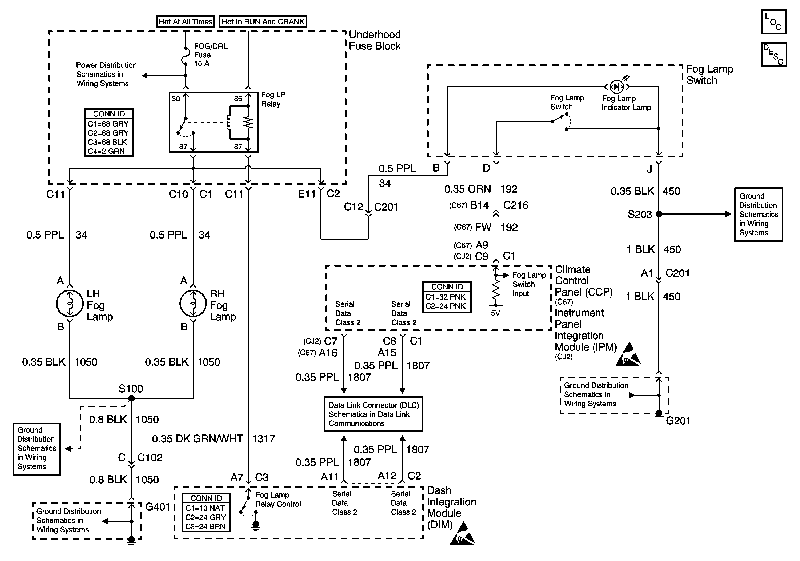

Here'* a sche too help in case its not the relay. The important thing to note here is the foglight switch input goes to the climate control module which communicates to the dash intergration module, its this module that turns on the relay.
Name:  foglight.gif
Views: 11
Size:  13.3 KB
Old 12-30-2004, 06:17 PM
  #7
Junior Member
Thread Starter

Sicpupp's Avatar

Join Date: Dec 2004
Location: Fort Jackson, SC
Posts: 4
Likes: 0
Received 0 Likes on 0 Posts
Sicpupp is on a distinguished road
Default

Thanks, I found what was wrong. There was a short under the fuse box. Lights are working like new! Have a Happy New Year!
Old 12-30-2004, 07:56 PM
  #8
Senior Member
True Car Nut

PontiacDad's Avatar

Join Date: Jun 2003
Location: Purgatory
Posts: 6,313
Likes: 0
Received 0 Likes on 0 Posts
PontiacDad is on a distinguished road
Default

Thanks for getting back to us with the problem and glad you got it working again.
