Default E.C.C Blinking at me

Yet again another Bonneville with a flashing climate control. THis thing has been doing this for months and it is a crap shoot whether you get full heat or AC. Sometimes it will blend the air but usually you will get full heat or full ac. In winter time this is really not fun. It has done this since august when I replaced the battery. It did it about a year and half ago also when the intake decided to explode. It hadn't done it again until I replaced the battery. There has got to be a way to reprogram this thing to work properly. If I have to pull the dash out to fix it I will just get rid of the car on some unsuspecting car dealership because it is not worth putting that much money into a 10 year old car.

THe car is a 97 Bonneville SLe with 88k miles if that makes a difference. I know the older ones had more on board diagnostics.

THanks for the help
Bonzilla is offline   Reply With Quote
Old 01-02-2008, 10:19 AM   #2
Senior Member
True Car Nut
Join Date: May 2005
Location: _Phoenix, AZ_ _WCBF '05, '06, '07 Survivor_ ____NEBF '07 Remnant___
Posts: 3,448
Thanks: 0
Thanked 0 Times in 0 Posts
Echo SSEI is on a distinguished road

Calibration of the system is simple, but a bit of a pain.

First, you need to remove the inner glove box, then look through the hole (the one closest to the center of the car in the dash board brace) to find the threaded air mix door actuator rod that is snapped into a white plastic retainer. Depending on what temperature your system is set at and what the temp is inside, it may be a little difficult to see. You can adjust your temp to try to see it better. While adjusting the temp, you should see the arm and conector travel back and forth as it adjuts the mix of hot and cold air. Once you have it located, you need to stick a flat bladed screwdriver into the hole and underneath the rod (not the connector) and "pop" the rod up, out of the white connector. The hole you want to look through will be the one closest to the driver'* side as shown in this pic.

Click the image to open in full size.

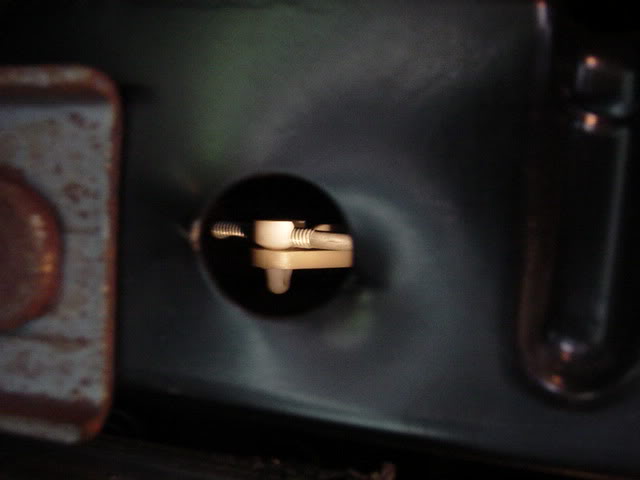

This pic is looking through the hole, behind the glovebox that shows the airmix door actuator rod in place in the white connector that is attached to the airmix door to determine how much hot/cold air. There is small black plastic box that you can't see that drives that rod. While looking through the hole, adjust your temperature on the contol panel and observe what the rod does. It should move all the way to the passenger side for full heat, and all the way to the driver'* side for full cold. If it binds, pops, or clicks, and doesn't move or moves erratically, then the airmix actuator is broken.

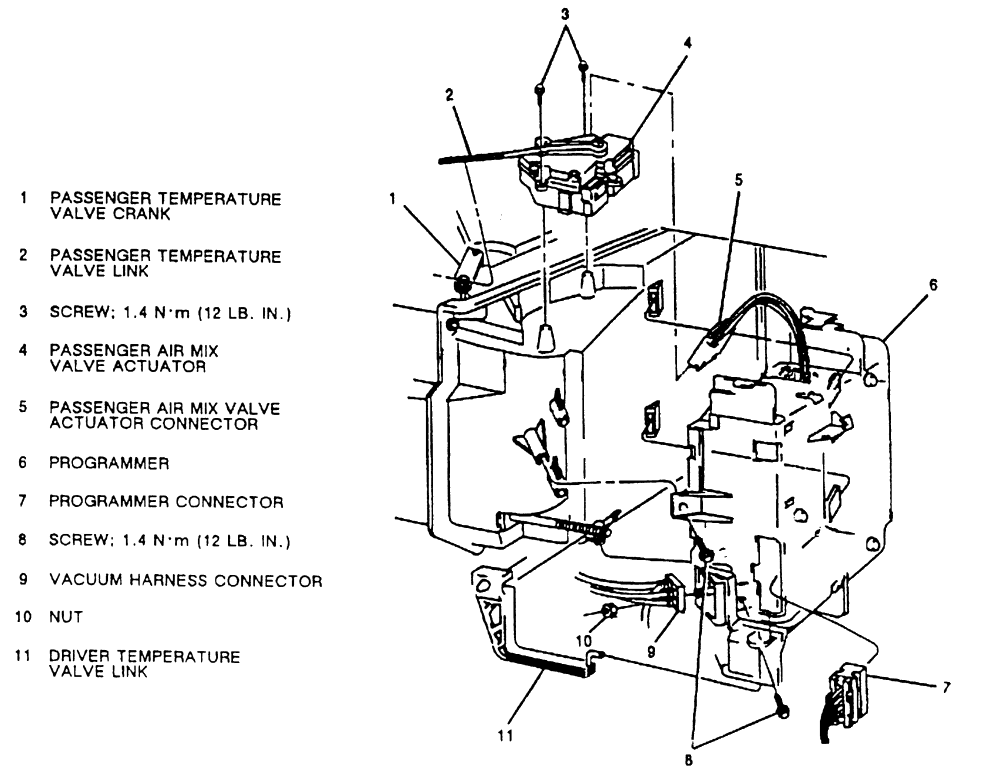

Here is a drawing showing the airmix door actuator location. You can't get to it though the glove box. You have to go from underneath or take the dashboard off.

Click the image to open in full size.

With the air mix door rod disconnected from the airmix actuator, the calibration procedure tells you to command "Full Hot" from your dash controller. This moves the "gears" in the actuator and the rod to the "Full Hot" position. With the door rod disconnected, your door is supposed to default to full heat (I suppose they designed it so those in the colder climates wouldn't ever freeze to death if the damn thing failed, but those of us in the warmer climes really don't think being baked to a crisp is a very enjoyable way to go, either). Anyways, snapping the rod onto the connector after both items are in the full hot position is what "calibrates" the system.

"Not Stock Anymore" Bob Click here for WCBF '08 info

Bonneville Club COTM - February 2006 Best ET=14.528, Best 60=2.191, Best Trap=94.73 mph. Gutted airbox, K&N drop-in, Autolite 105s, 3.5 MPS
Echo SSEI is offline   Reply With Quote
Old 01-02-2008, 11:18 AM   #3
Certified GM nut
Join Date: Jul 2004
Location: West Point, Utah - Village Idiot
Posts: 1,606
Thanks: 0
Thanked 2 Times in 2 Posts
SSE Motorhead is on a distinguished road

I agree with Echo - watch your actuator for smooth movement. Smart money is on a hosed actuator. If that'* the case, you don't need to pull the dash off. It'* possible to get to it from under the dash. It'* a PITA, but better than pulling the dash. In the meantime, you can accomplish teh "redneck" fix until you have time to go after the actuator.
SSE Motorhead is offline   Reply With Quote
Old 01-03-2008, 01:17 PM   #4
Junior Member
Join Date: Dec 2006
Location: Delaware
Posts: 2
Thanks: 0
Thanked 0 Times in 0 Posts
Bonzilla is on a distinguished road

Thanks for the help. When the temperature decides to go above 25 degrees here in Delaware I will take a look at this thing. Thanks MIke
Bonzilla is offline   Reply With Quote
