Old 01-15-2007, 12:00 AM   #1
Senior Member
Posts like a Northstar
Join Date: Jan 2006
Location: Charleston S.C.
Posts: 560
Thanks: 0
Thanked 0 Times in 0 Posts
PEARL_JAM is on a distinguished road

On 92-99 Bonnevilles equiped with electric climate control, a common part to fail is the a/c programmer. When it does fail, the result is air only blowing out of the defrost vents.

The cause:
At the factory a grease coating is used when connecting the vacum line connector to the programmer. Over time, this grease causes deterioration of the programmer'* hard nipples turning them into soft nipples :( which causes a small vacum leak.

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

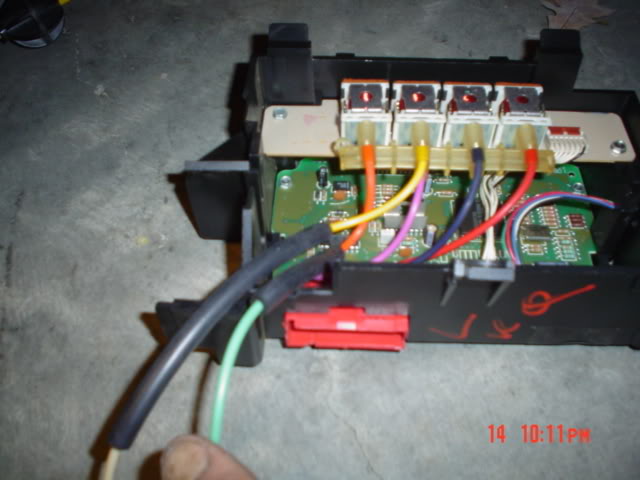

What I did was remove the programmer'* cover, cut and remove the programmer'* connector, cut and remove the vacum line vonnector, and directly link them, bypassing the failed connection.
Click the image to open in full size.
After this, I snapped the cover back on, reinstalled into my car, and tested for proper operation.
"I want you to cause a variety of damage!" ~Mickey~
1996 Bonneville SE. SR-71 BLACKBIRD
